Setting up a bar

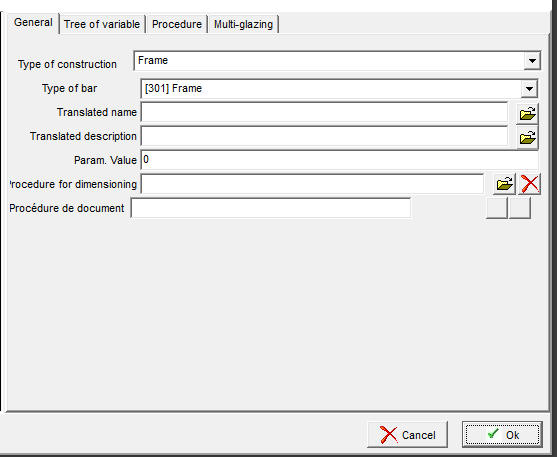

General tab

Type of construction
- Frame
- Conservatory
- Gate
- ...
Type of bar
- Select the type of bar
- The selection list change according to the type of construction
Translated name
- Link a text for the different countries
Translated description
- Link a text for the different countries
- Param Value
- Free parameter value that can be tested in the program "b.paramvalue"
Procedure for dimesioning
- Allows to add specific cotation for parametric views
- See Procedures Tree of variable
See Variable Procedure
See Procedures Multi-glazing
Allows you to define the maximum number of filling layers. For each side of the bar (according to the adjacent meshes)

Bar style according to the constructions:

STYLE	VALUE	CONSTANT
GUTTER	101	BSGUTTER
RIDGE	102	BSRIDGE
WALLPLATE	103	BSWALLPLATE
PLANE RAFTER	104	BSPLANERAFTER
HIPRAFTER	105	BSHIPRAFTER
VALLEY	106	BSVALLEY
TRANSOM BETWEEN RAFTER	107	BSINTERMEDIATE
TRANSOM BETWEEN POST	108	BSINTERMEDIATEBETWEEN
OBLIC GUTTER	109	BSUPRUNNINGGUTTER
GROUND	110	BSGROUND
POST	111	BSPOST
SIDE RAFTER	112	BSENDRAFTER
WALL RAFTER	113	BSWALLRAFTER
ALONE	114	BSALONE
PARTITIONNING RIDGE	115	BSDOUBLERIDGE
STAGE WALLPLATE	116	BSRIDGELEVEL
PARTITIONING STAGE WALLPLATE	117	BSPARTITIONINGSTAGEWALLPLATE
PARTITIONING PLANE RAFTER	118	BSPARTITIONINGPLANERAFTER
PARTITIONING HIPRAFTER	119	BSPARTITIONINGHIPRAFTER
PARTITIONING VALLEY	120	BSPARTITIONINGVALLEY
RIGHT VALLEY	121	BSRIGHTVALLEY
PARTITIONING RIGHT VALLEY	122	BSPARTITIONINGRIGHTVALLEY
PARTITIONING INTERMEDIATE	123	BSPARTITIONINGINTERMEDIATE
ANGLE INTERMEDIATE	124	BSANGLEINTERMEDIATE
PARTITIONING ANGLE INTERMEDIATE	125	BSPARTITIONINGANGLEINTERMEDIATE
OVERFLOWING GUTTER	150	BSOVERFLOWINGGUTTER
RIGHT GUTTER	151	BSRIGHTGUTTER
TWYERS SIDE	152	BSTWYERSSIDE
PARTITIONING TWYERS SIDE	153	BSPARTITIONINGTWYERSSIDE
RIGHT TWYERS SIDE	154	BSRIGHTTWYERSSIDE
PARTITIONING RIGHT TWYERS SIDE	155	BSPARTITIONINGRIGHTTWYERSSIDE
BEAM	156	BSBEAM
BRACE	157	BSBRACE
PARTITIONING BEAM	158	BSPARTITIONINGBEAM
PARTIONING BRACE	159	BSBRACEPARTIONING
BEAM AGAINST WALL	160	BSWALLBEAM
ALONE POST	161	BSALONEPOST
TIE	162	BSPULLER
RIGHT WALLPLATE	163	BSRIGHTWALLPLATE
PARTITIONING RIGHT WALLPLATE	164	BSPARTITIONINGRIGHTWALLPLATE
FREE CONSERVATORY	199	BSFREECONSERVATORY
