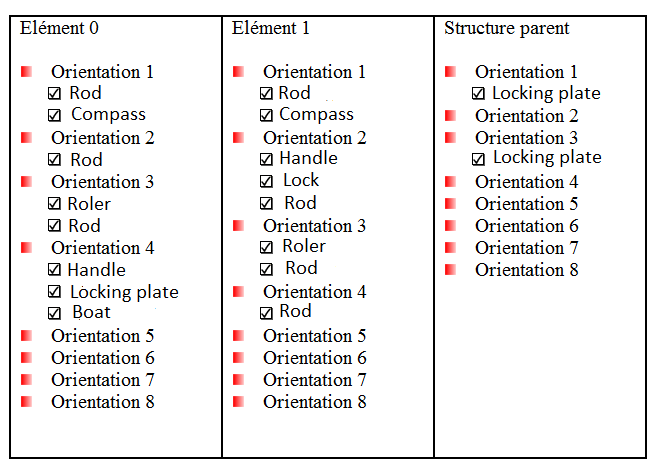

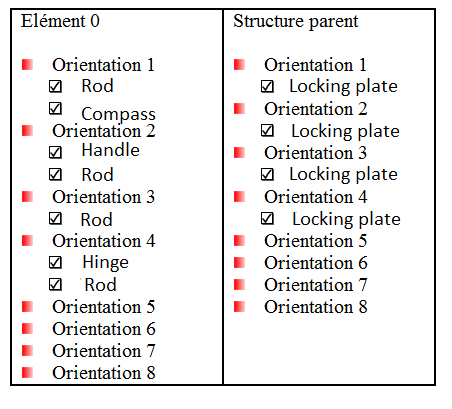

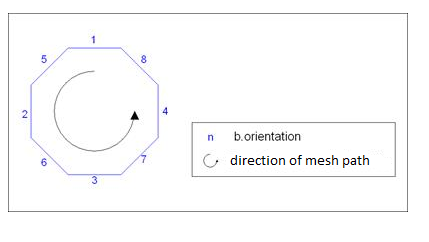

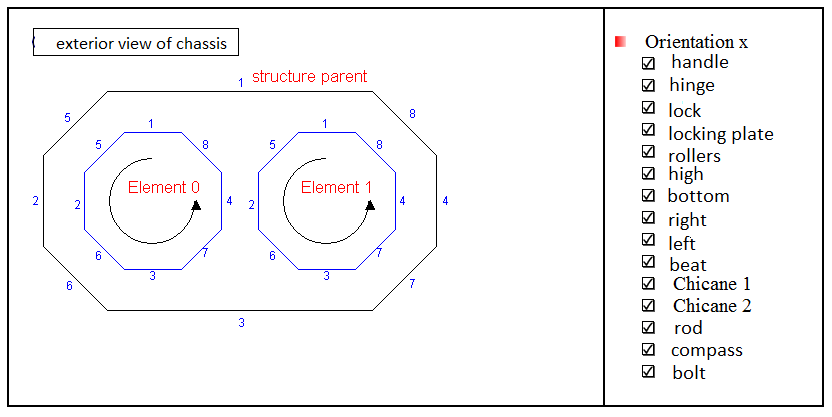

Reminder: Bar orientation: b.orientation :

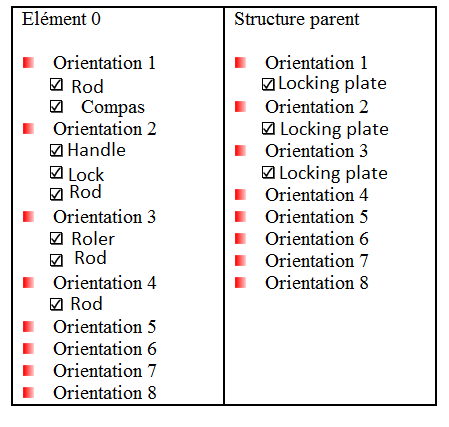

For each bar orientation of each opening process :

Note 1: Valid for all elements of each opening process:

Orientation	Element 0	Parent Structure
Orientation 1	hight	high
Orientation 2	Left	Left
Orientation 3	Bottom	Bottom
Orientation 4	Right	high
Orientation 5	Hight / Left	Hight / Left
Orientation 6	Bottom / Left	Bottom / Left
Orientation 7	Bottom / Right	Bottom / Right
Orientation 8	hight / Right	hight / Right

Note 2: Images of opening processes are seen from the outside when the color is blue and from the inside when the color is red:

Hardware properties of opening processes

Basculants and pivants

return to top list

Basculants :

Left pivants :

Right pivants :

opening hits

return to top list

Left sash (inside and outside opening)

Right sash (inside and outside opening)

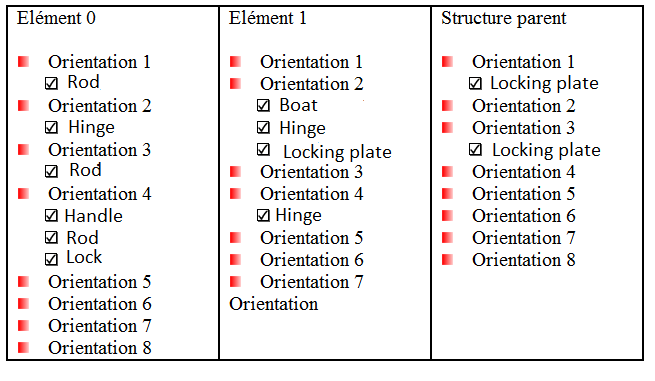

Double opening l-r (inside and outside):

Double opening r-l (int)

Tilt turn and drop open

return to top list

Left tilt-turn

Right tilt-turn

Double oscillating leaf left

Double oscillating leaf right

Internal Tombant and external flange

return to top list

Tombant (int)

Relevant (ext)

Projecting Italian

return to top list

Italian projector

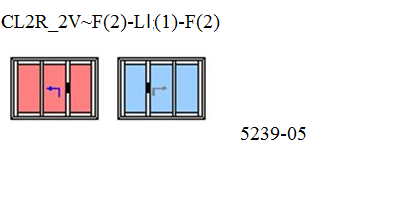

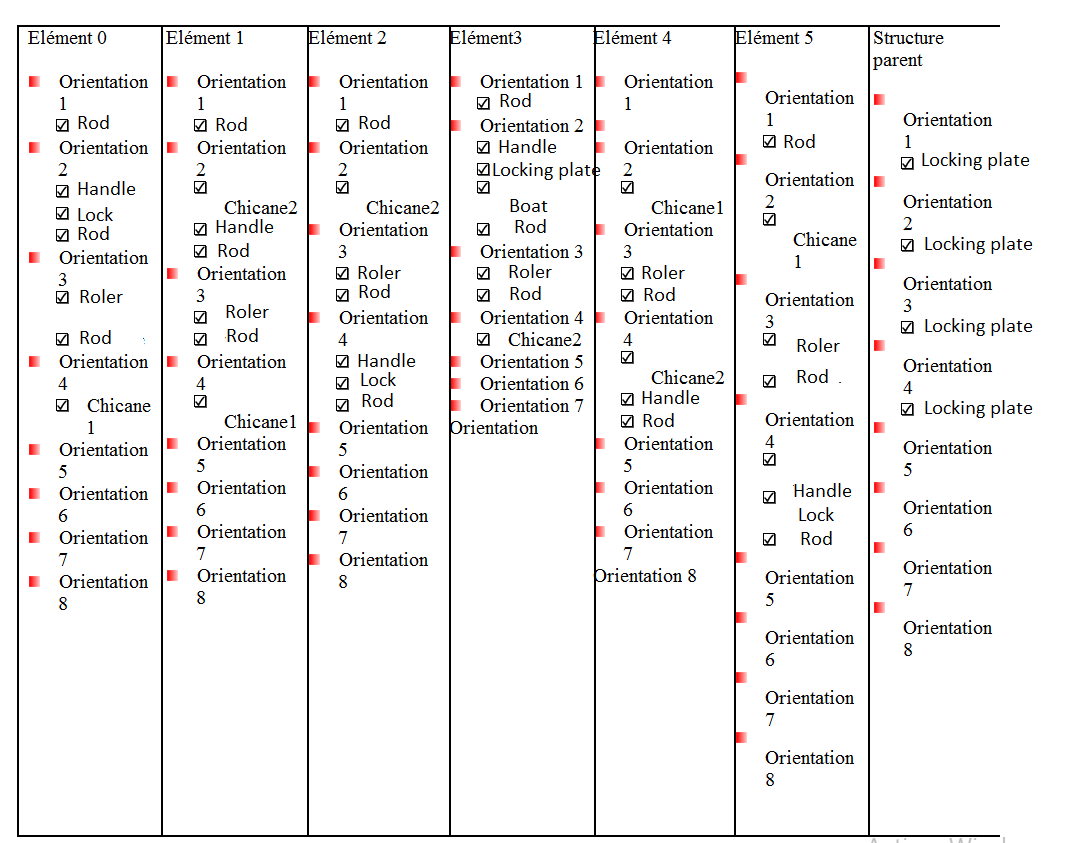

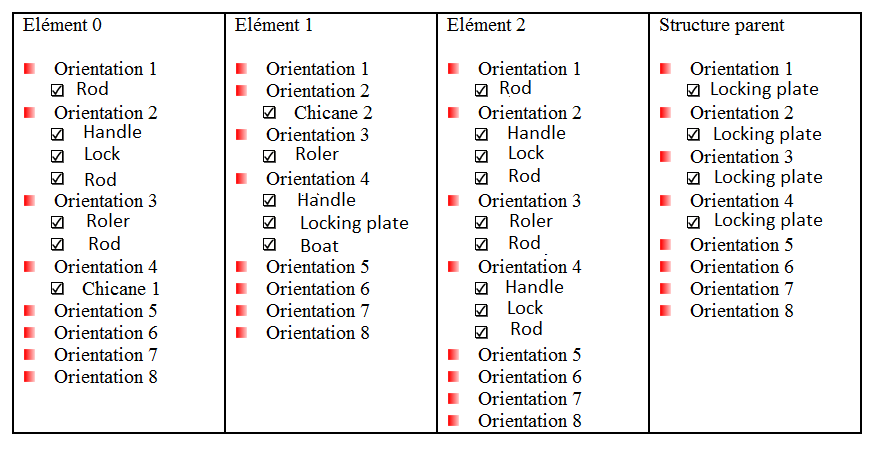

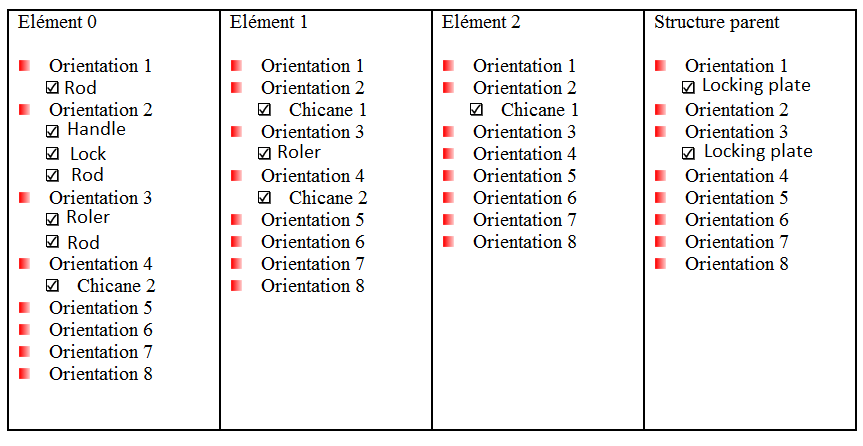

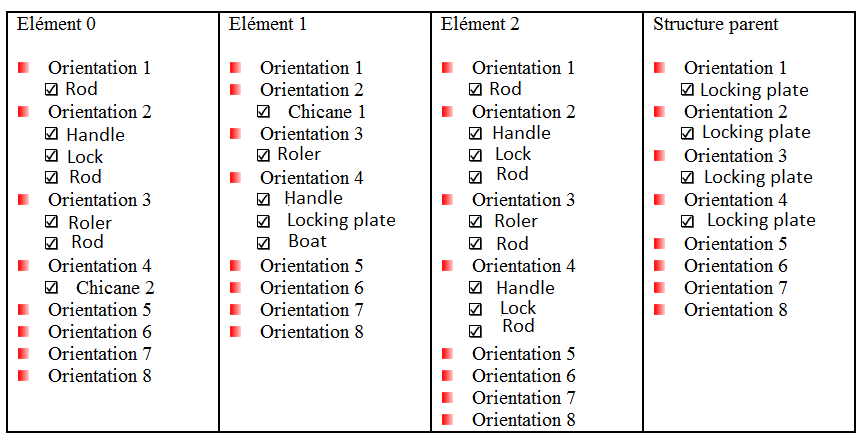

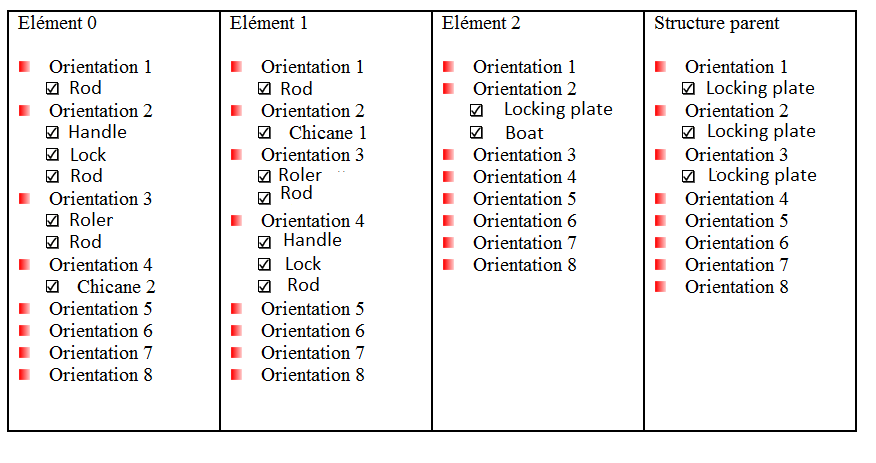

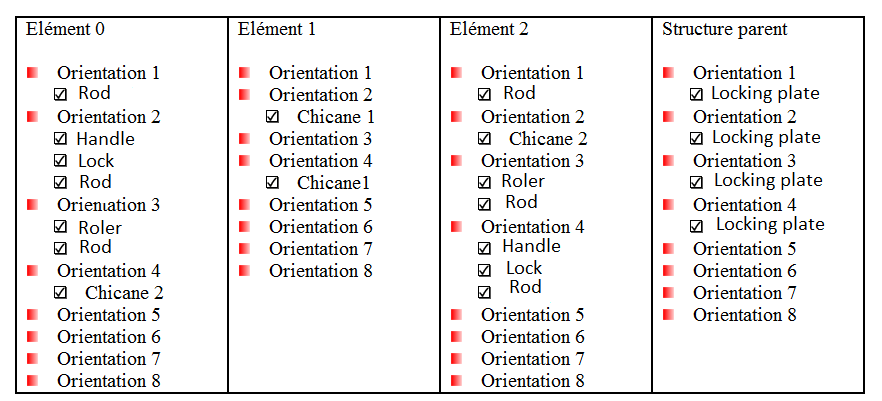

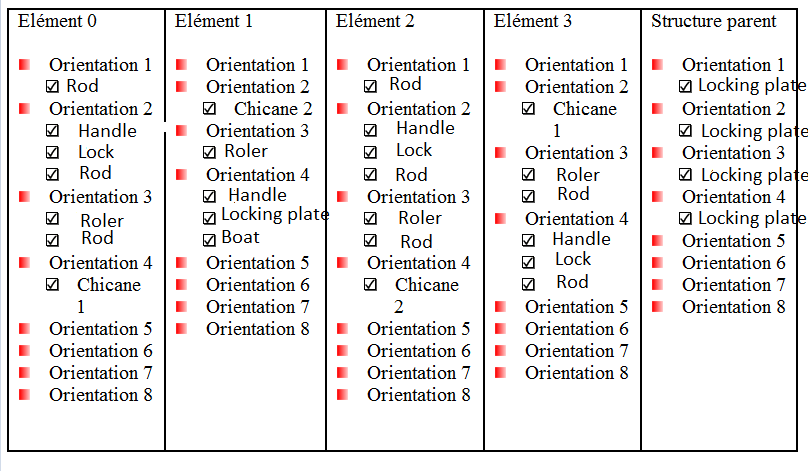

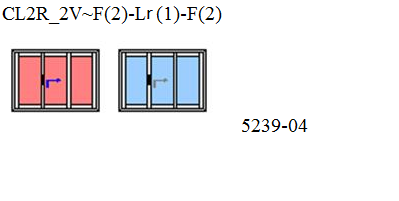

Sliding doors and windows

return to top list

Tombant sliding doors and windows

return to top list

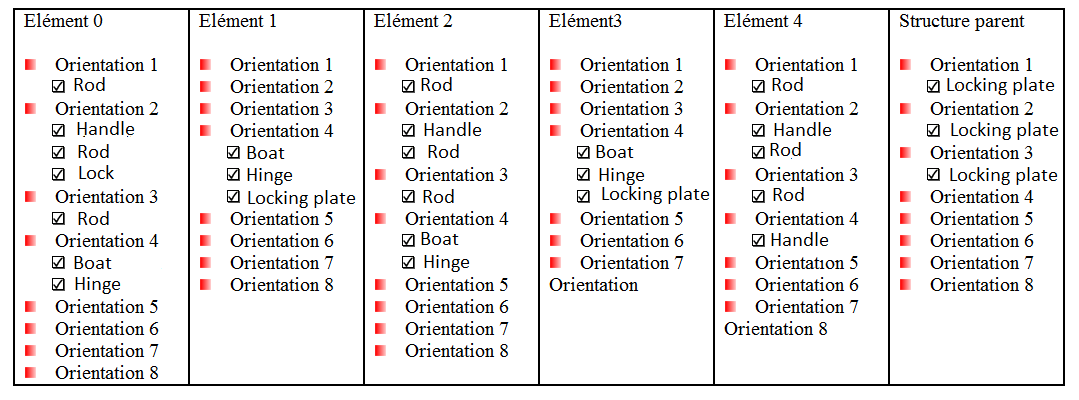

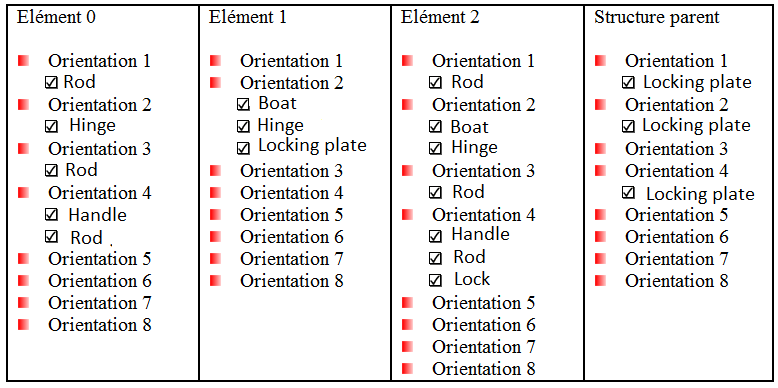

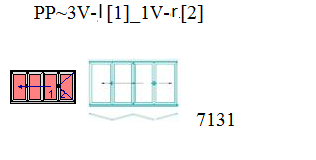

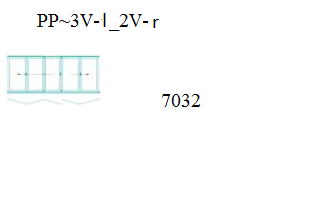

Folding-sliding (accordion) doors

return to top list

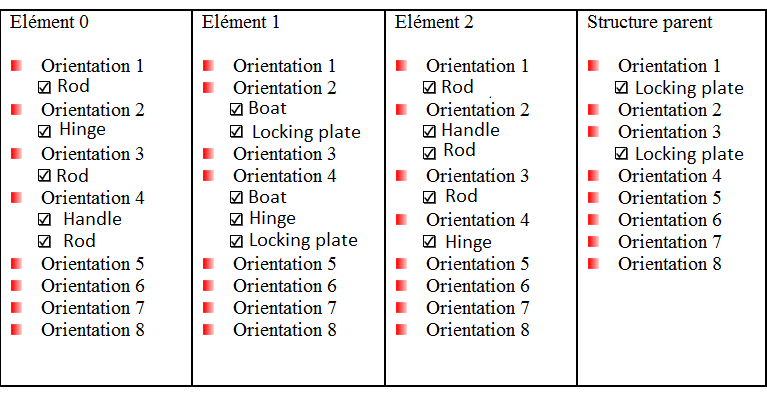

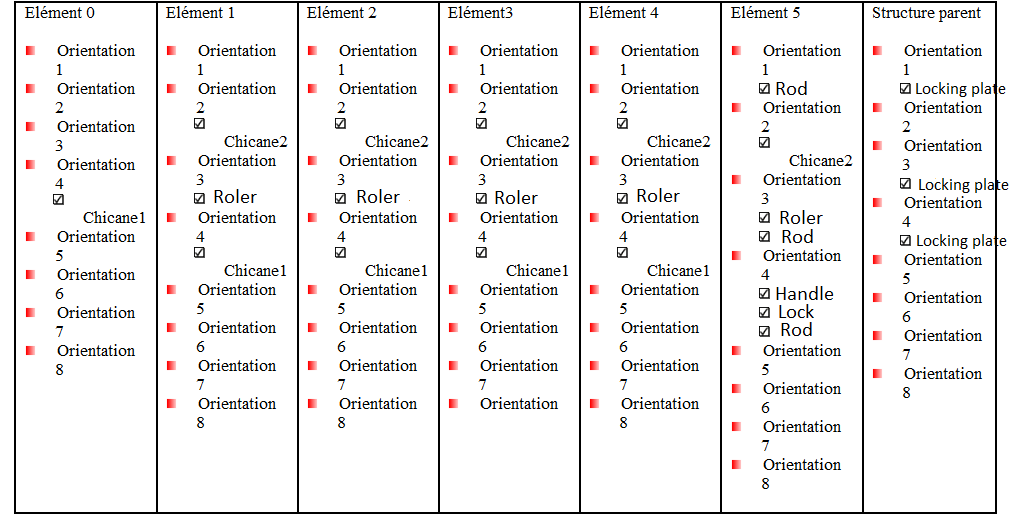

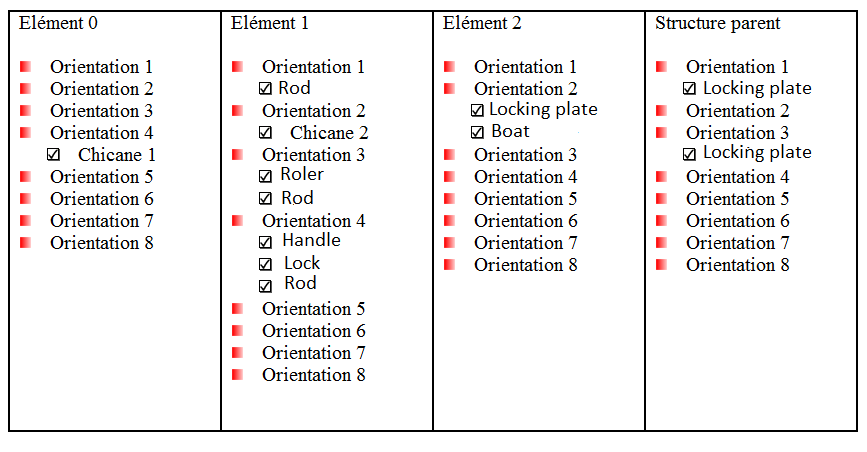

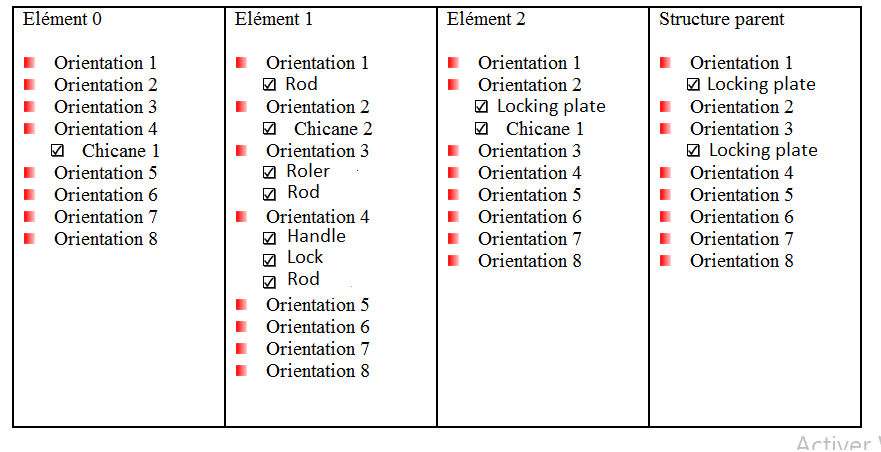

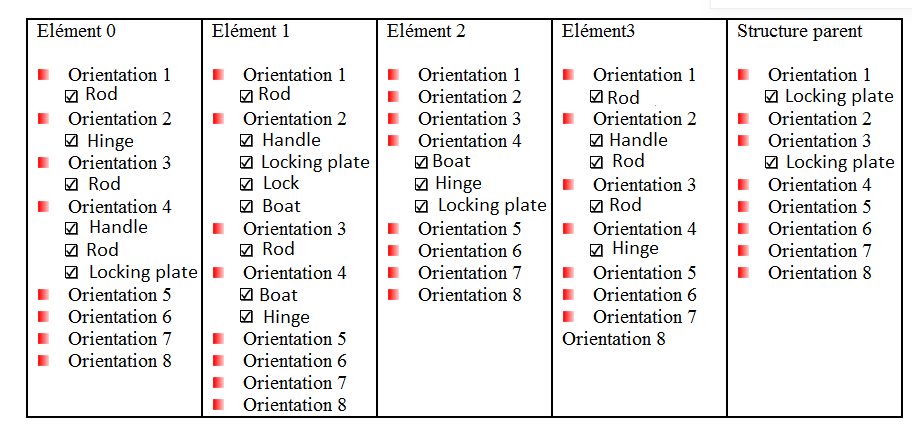

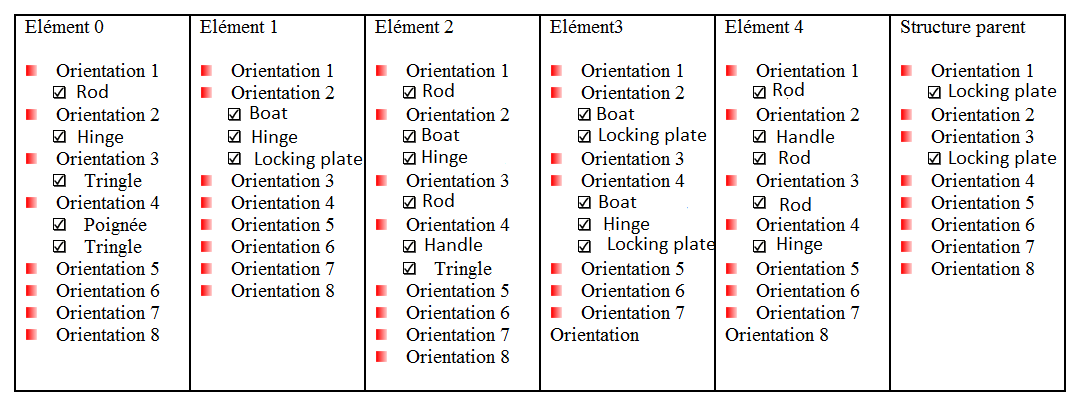

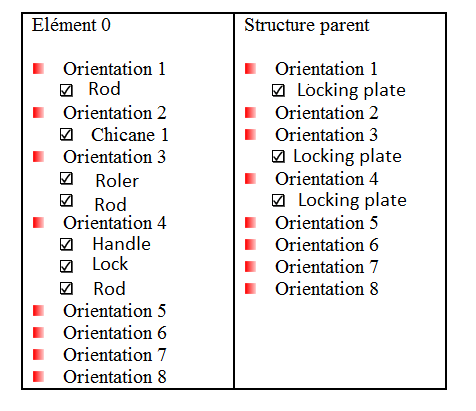

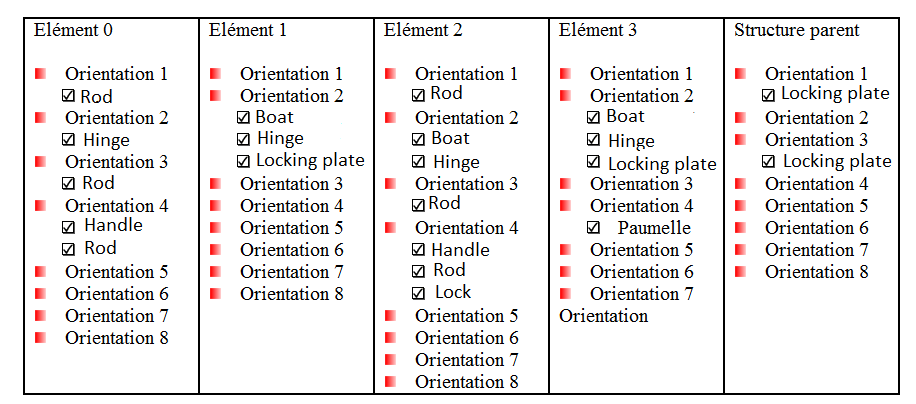

Orientation	Element 0	Element 1	Element 2	Element 3	Element 4	Element 5	Parent Structure
Orientation 1	Rod		Rod		Rod		Locking plate
Orientation 2	Hinge	Boat / Hinge / Locking plate	boat / Hinge	Boat / Hinge / Locking plate	Hinge / Boat	Boat / Hinge / Locking plate
Orientation 3		Rod		Rod		Rod	Locking plate
Orientation 4	Handle / Rod		Handle / Rod		Handle / Rod / Lock

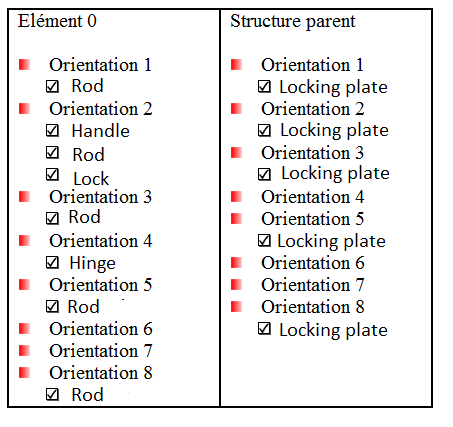

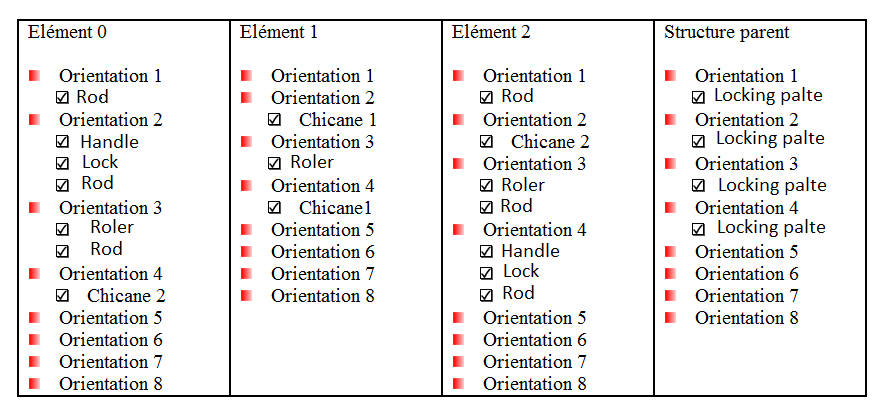

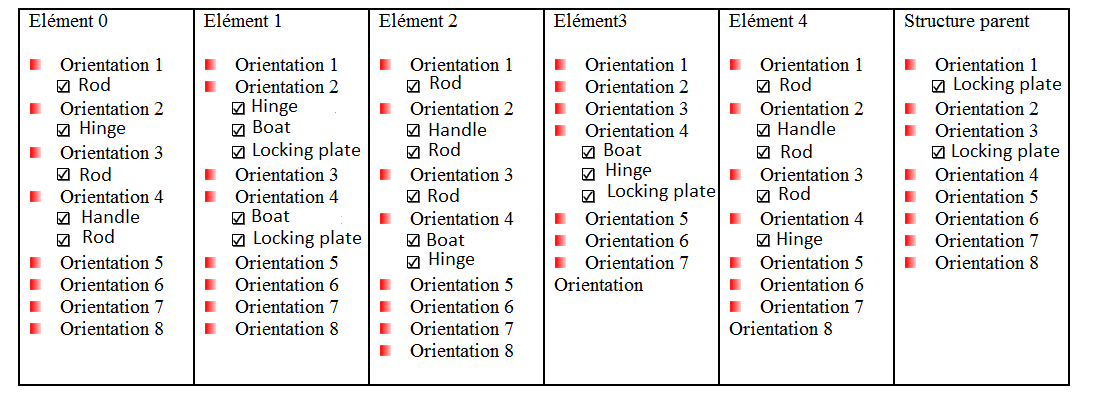

Orientation	Element 0	Element 1	Element 2	Element 3	Element 4	Element 5	Parent Structure
Orientation 1		Rod		Rod		Rod	Locking plate
Orientation 2	Hinge	Handle / Rod / Lock		Handle / Rod		Handle / Rod
Orientation 3		Rod		Rod		Rod	Locking plate
Orientation 4	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Hinge

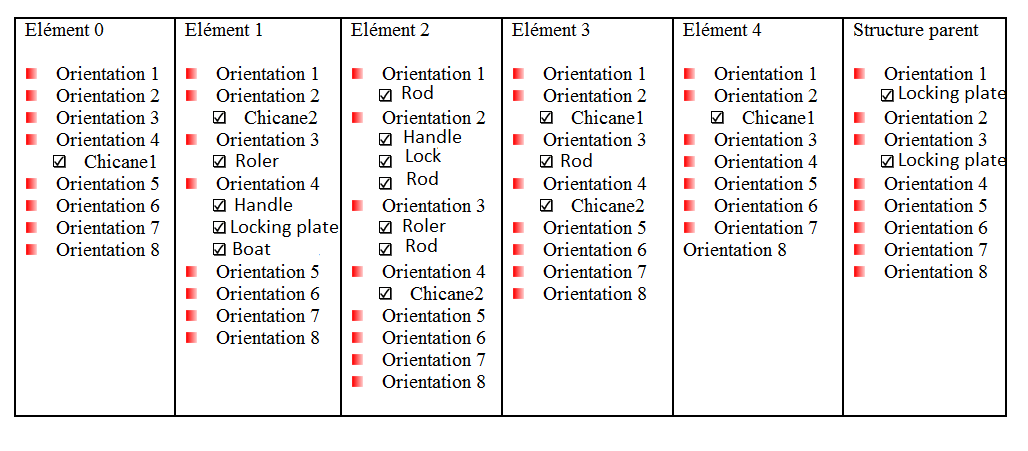

Orientation	Element 0	Element 1	Element 2	Element 3	Element 4	Element 5	Element 6	Parent Structure
Orientation 1	Rod		Rod			Rod	Locking plate
Orientation 2	Hinge	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge	Boat / Hinge / Locking plate	Hinge / Boat
Orientation 3	Rod		Rod		Rod		Rod	Locking plate
Orientation 4	Handle / Rod		Handle / Rod		Handle / Rod		Handle / Rod / Lock	Locking plate

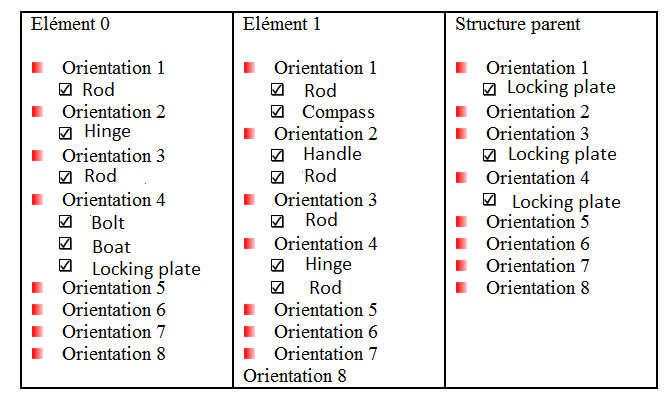

Orientation	Element 0	Element 1	Element 2	Element 3	Element 4	Element 5	Element 6	Parent Structure
Orientation 1	Rod		Rod		Rod		Rod	Locking plate
Orientation 2	Handle / Rod / Lock		Handle / Rod		Handle / Rod		Handle / Rod	Locking plate
Orientation 3	Rod		Rod		Rod		Rod	Locking plate
Orientation 4	Boat / Hinge	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Hinge

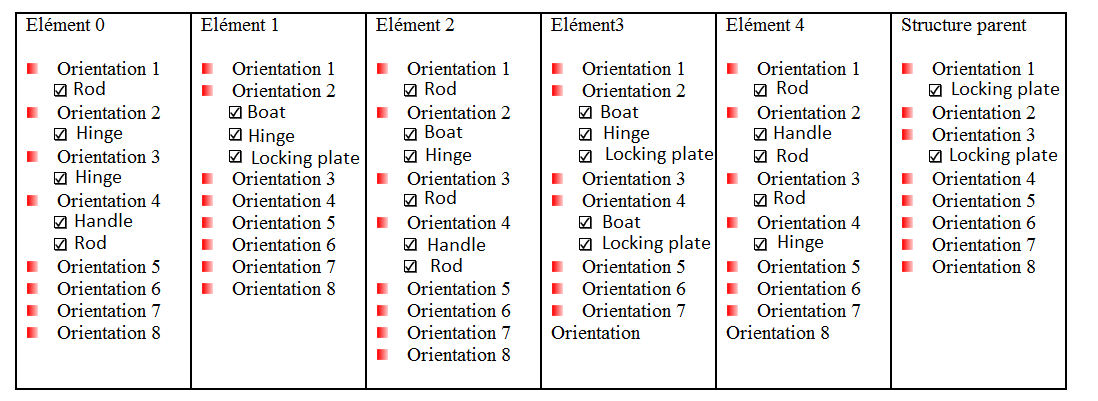

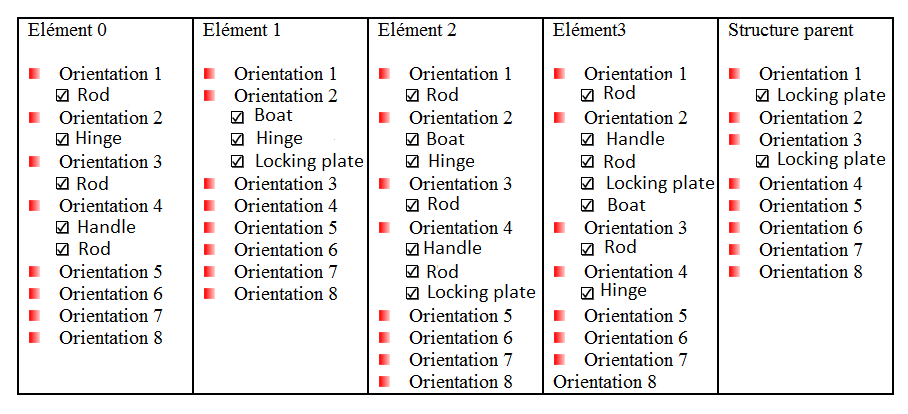

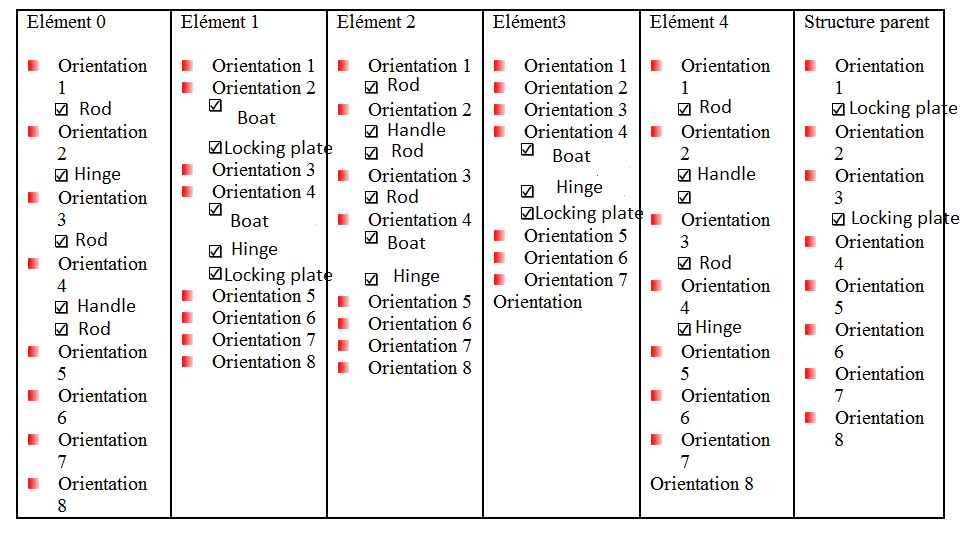

Orientation	Element 0	Element 1	Element 2	Element 3	Element 4	Element 5	Element 6	Element 7	Parent Structure
Orientation 1	Rod			Rod		Rod		Rod
Orientation 2	Hinge	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Hinge / Boat	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Locking plate
Orientation 3	Rod		Rod		Rod		Rod		Locking plate
Orientation 4	Handle / Rod		Handle / Rod		Handle / Rod / Lock		Handle / Rod	Hinge

Orientation	Element 0	Element 1	Element 2	Element 3	Element 4	Element 5	Element 6	Element 7	Parent Structure
Orientation 1		Rod		Rod		Rod		Rod	Locking plate
Orientation 2	Hinge	Handle / Rod / Lock		Handle / Rod		Handle / Rod		Handle / Rod
Orientation 3		Rod		Rod		Rod		Rod	Locking plate
Orientation 4	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Boat / Hinge	Boat / Hinge / Locking plate	Hinge

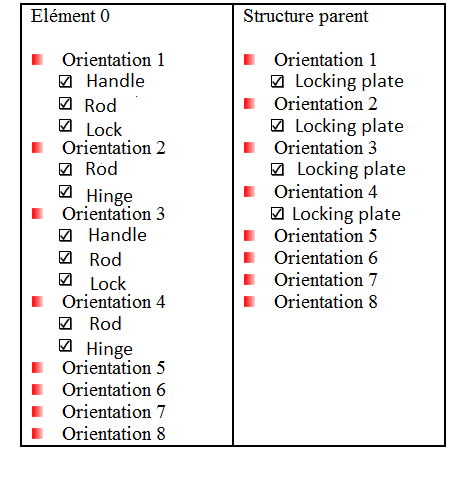

Doors

return to top list

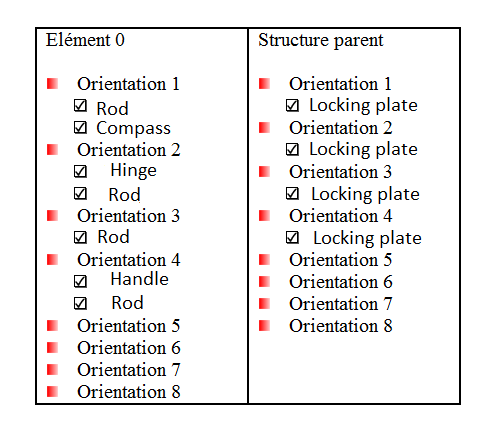

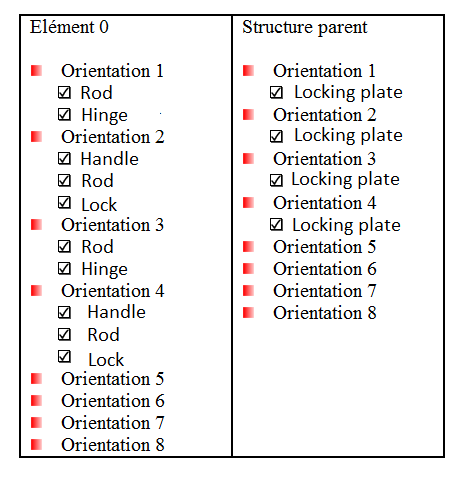

Left-hand opening door :

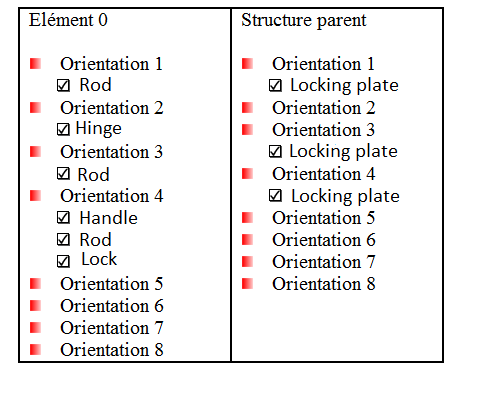

Orientation	Element 0	Parent Structure
Orientation 1	Rod / Hinge	Locking plate
Orientation 2	Lock / Rod / Handle	Locking plate
Orientation 3	Rod / Hinge	Locking plate
Orientation 4	Rod	Locking plate

Right-hand opening and closing door :

Orientation	Element 0	Parent Structure
Orientation 1	Rod / Hinge	Locking plate
Orientation 2	Rod	Locking plate
Orientation 3	Rod / Hinge	Locking plate
Orientation 4	Lock / Rod / Handle	Locking plate

Double door back and forth :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Rod / Hinge	Rod / Hinge	Locking plate
Orientation 2	Rod	Handle / Lock / Rod	Locking plate
Orientation 3	Rod / Hinge	Rod / Hinge	Locking plate
Orientation 4	Handle /Lock / Rod	Rod	Locking plate

Pivoting door left :

Orientation	Element 0	Parent Structure
Orientation 1	Rod / Hinge	Locking plate
Orientation 2	Lock / Rod / Handle	Locking plate
Orientation 3	Rod / Hinge	Locking plate
Orientation 4	Rod / Lock	Locking plate

Pivoting door right :

Orientation	Element 0	Parent Structure
Orientation 1	Rod / Hinge	Locking plate
Orientation 2	Rod / Lock	Locking plate
Orientation 3	Rod / Hinge	Locking plate
Orientation 4	Lock / Rod / Handle	Locking plate

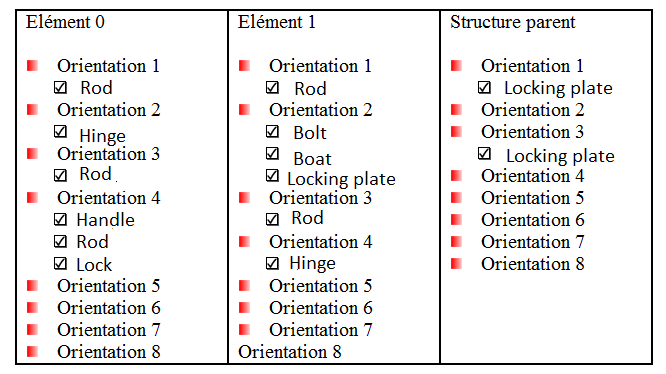

Double pivoting door L-R :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Rod / Hinge	Rod / Hinge	Locking plate
Orientation 2	Rod / Lock	Handle / Rod / Lock	Locking plate
Orientation 3	Rod / Hinge	Rod / Hinge	Locking plate
Orientation 4	Bolt /Boat / Locking plate / Handle	Rod / Lock	Locking plate

Double pivoting door R-L :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Rod / Hinge	Rod / Hinge	Locking plate
Orientation 2	Rod / Lock	Handle / Rod / Lock / Bolt / Boat / Locking plate / Handle	Locking plate
Orientation 3	Rod / Hinge	Rod / Hinge	Locking plate
Orientation 4	Handle / Rod / Lock	Rod / Lock	Locking plate

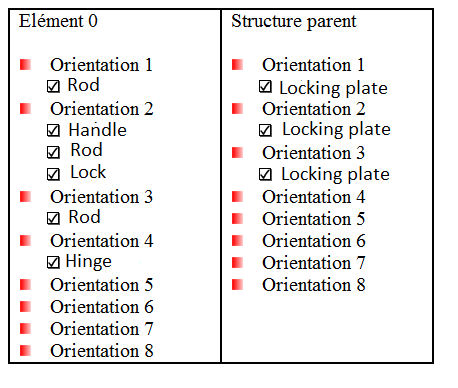

Door opening left (ext)/(int) :

Orientation	Element 0	Parent Structure
Orientation 1	Rod	Locking plate
Orientation 2	Handle / Rod / Lock	Locking plate
Orientation 3	Rod	Locking plate
Orientation 4	Hinge

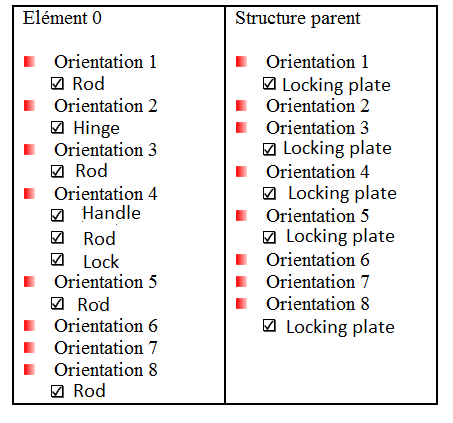

Door opening right (ext)/(int) :

Orientation	Element 0	Parent Structure
Orientation 1	Rod	Locking plate
Orientation 2	Hinge
Orientation 3	Rod	Locking plate
Orientation 4	Handle / Rod / Lock	Locking plate

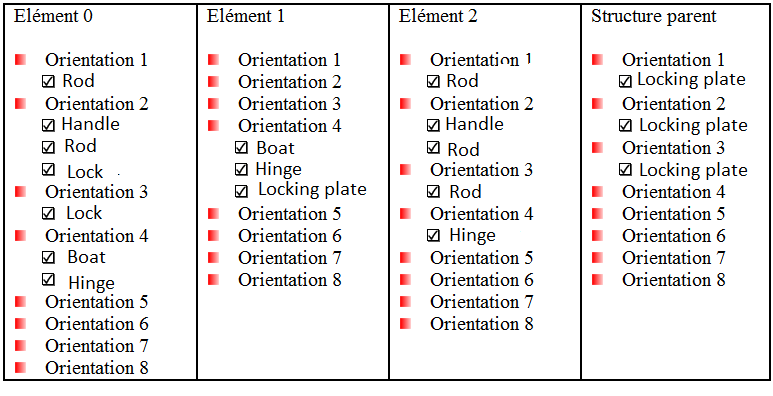

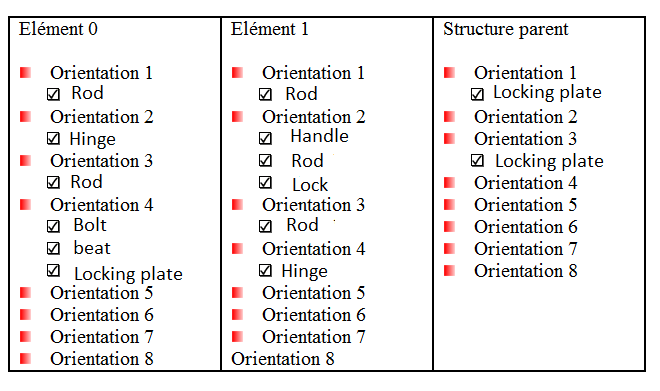

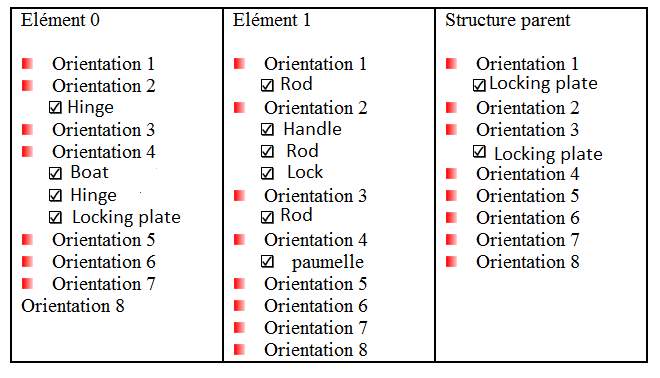

Double opening door L-R (ext)/(int) :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Rod	Rod	Locking plate
Orientation 2	Hinge	Handle / Rod / Lock
Orientation 3	Rod	Rod	Locking plate
Orientation 4	Bolt /Boat / Locking plate / Handle	Hinge

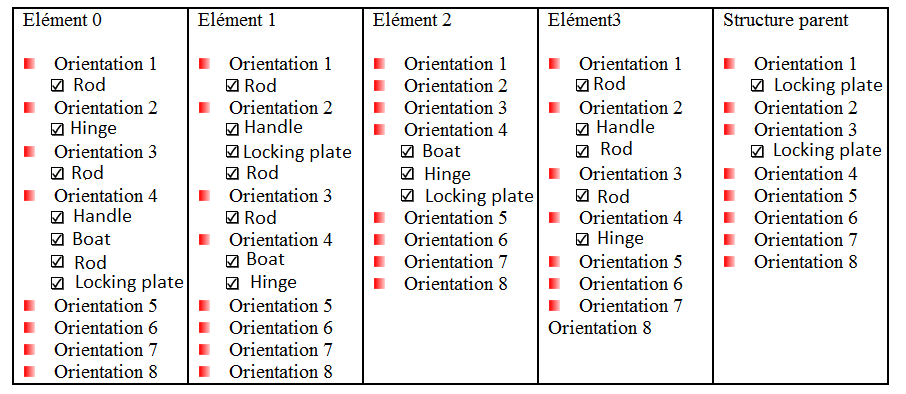

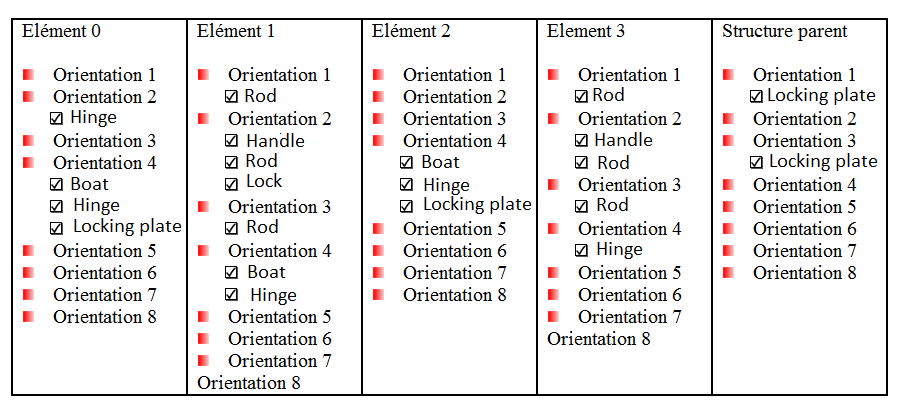

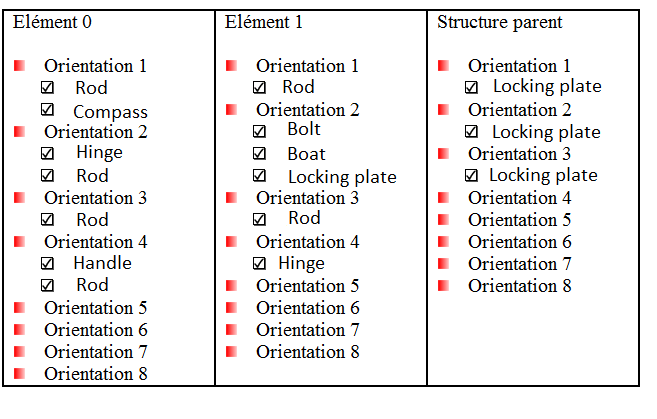

Double opening door R-L (ext)/(int) :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Rod	Rod	Locking plate
Orientation 2	Hinge	Bolt / Boat / Locking plate / Handle
Orientation 3	Rod	Rod	Locking plate
Orientation 4	Handle / Rod / Lock	Hinge

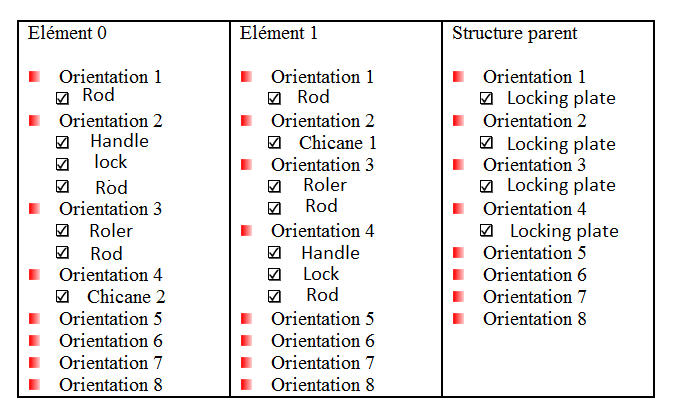

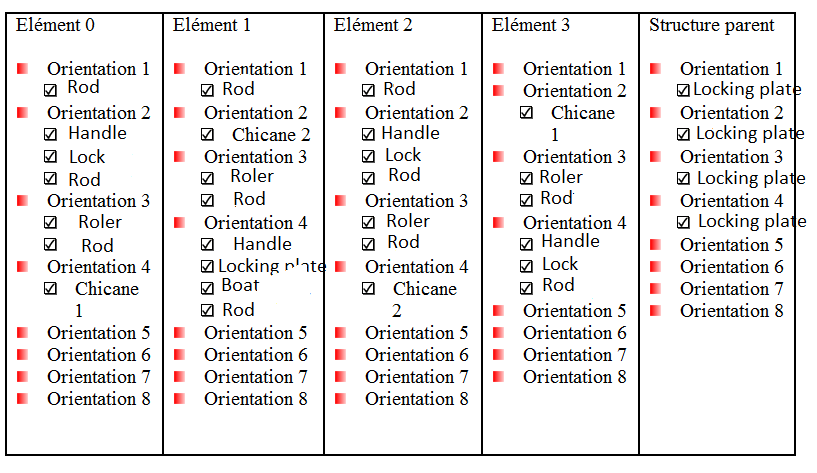

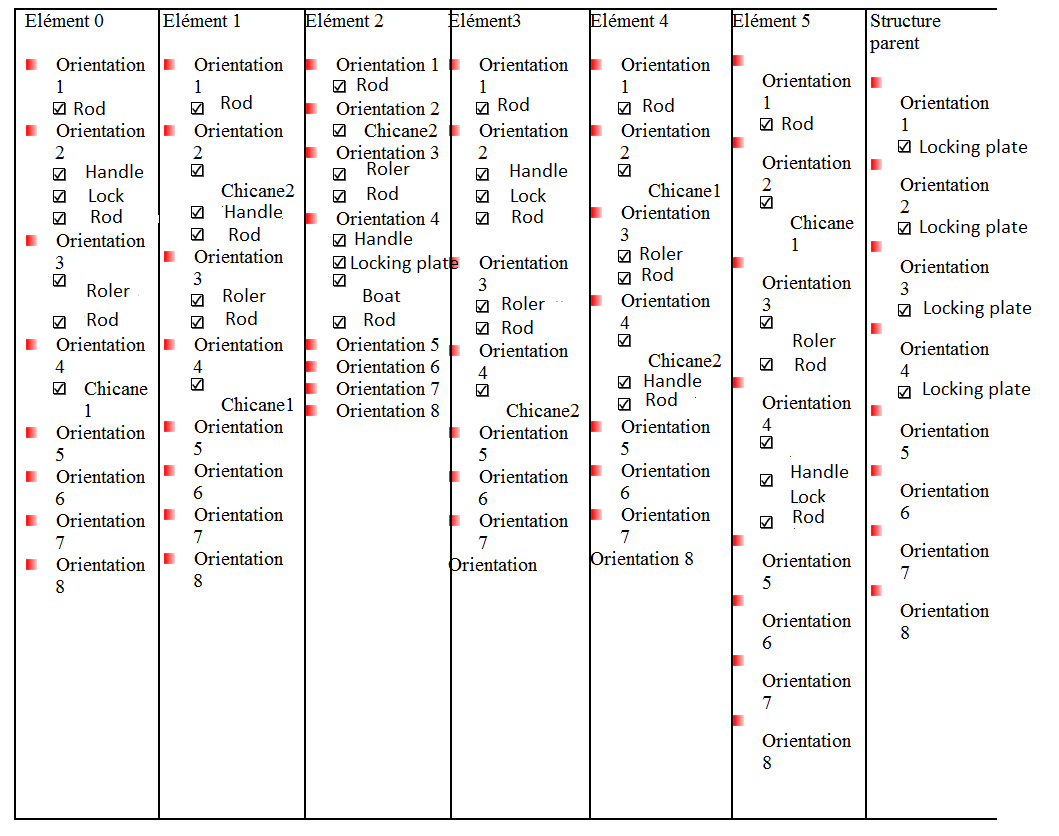

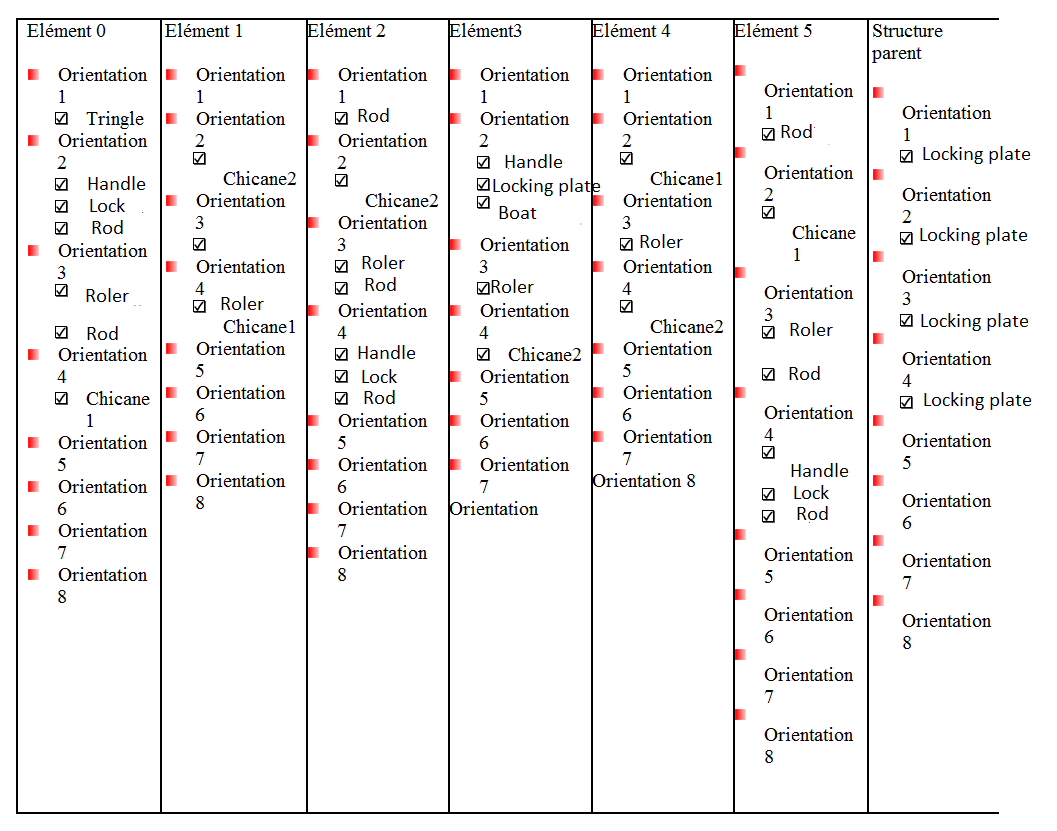

gallandage

return to top list

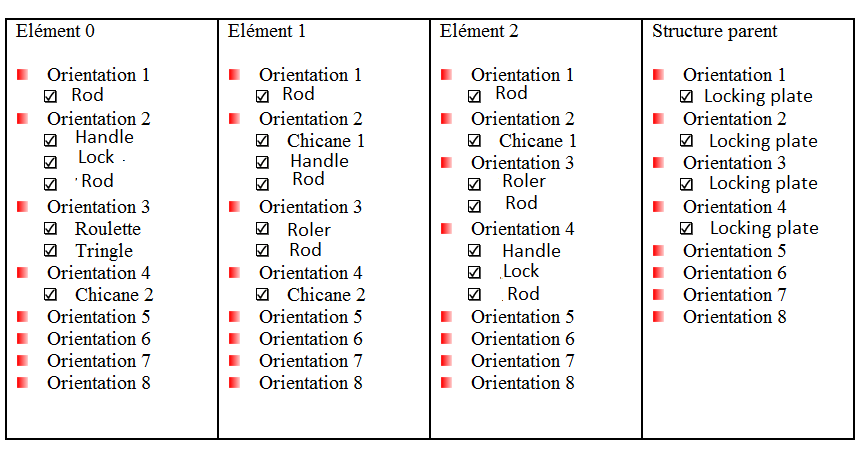

Galandage_1R_1V_Ll :

Orientation	Element 0	Parent Structure
Orientation 1	Rod	Locking plate
Orientation 2	Handle / Lock / Rod	Locking plate
Orientation 3	Rollers / Rod	Locking plate
Orientation 4

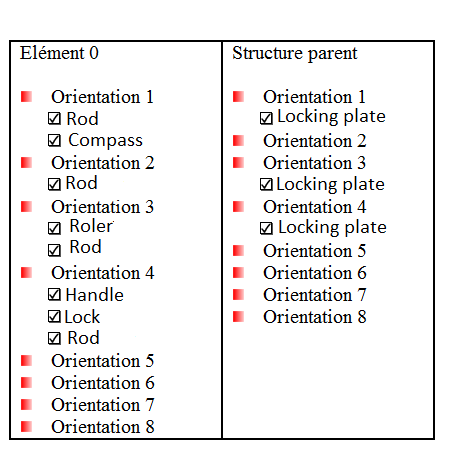

Galandage_1R_1V_Lr :

Orientation	Element 0	Parent Structure
Orientation 1	Rod	Locking plate
Orientation 2
Orientation 3	Rollers / Rod	Locking plate
Orientation 4	Handle / Lock / Rod	Locking plate

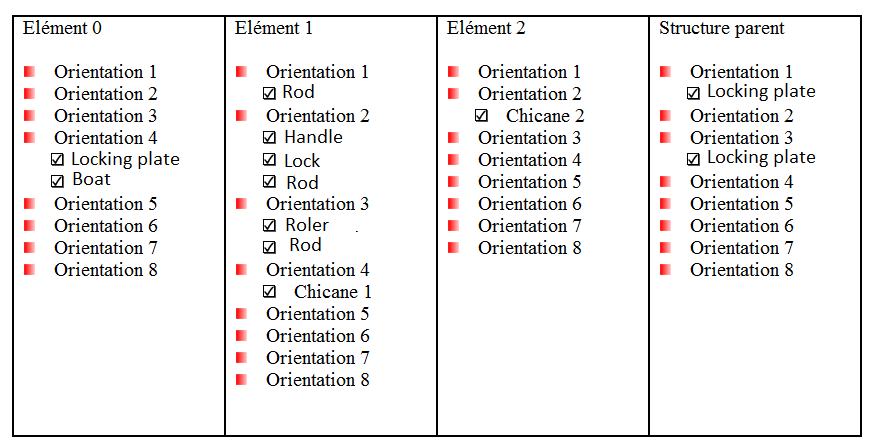

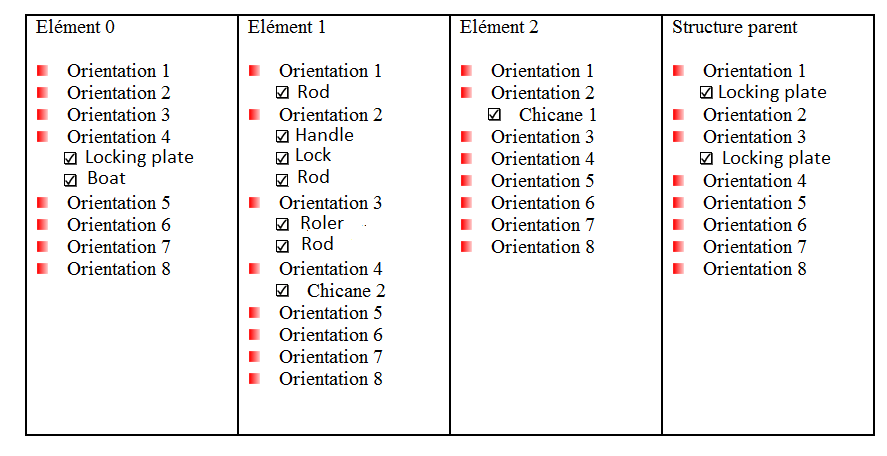

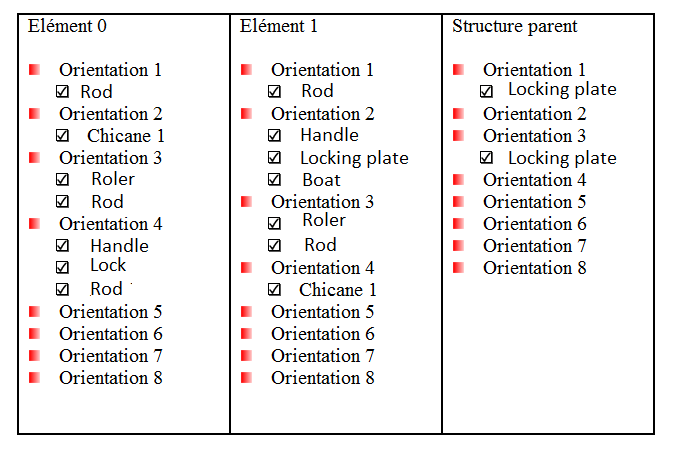

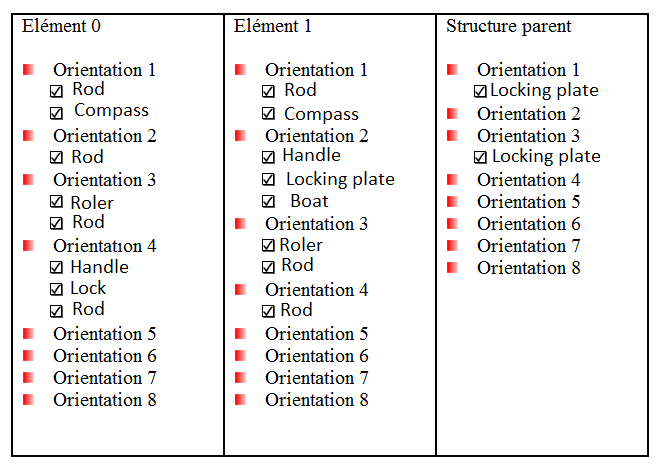

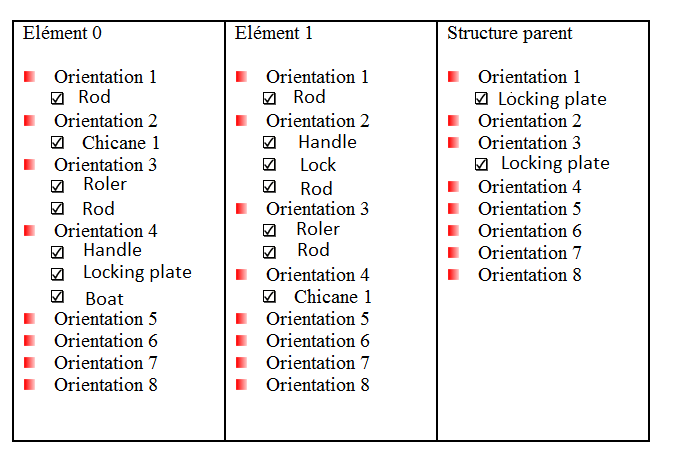

Galandage_1R_1V_Ll(2)-Lr(1) :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Rod		Locking plate
Orientation 2		Handle / Locking plate / Boat
Orientation 3	Rollers / Rod	Rollers	Locking plate
Orientation 4	Handle / Lock / Rod

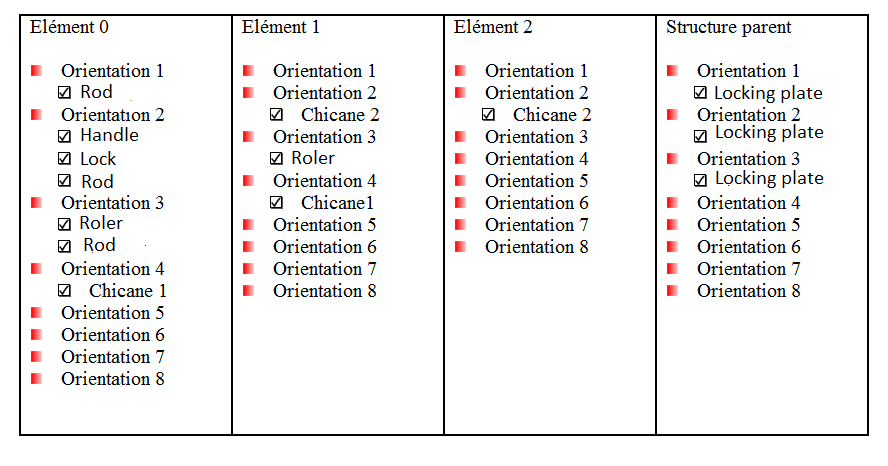

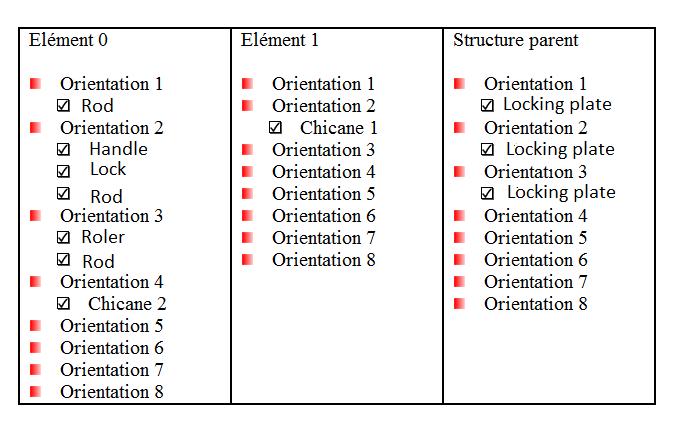

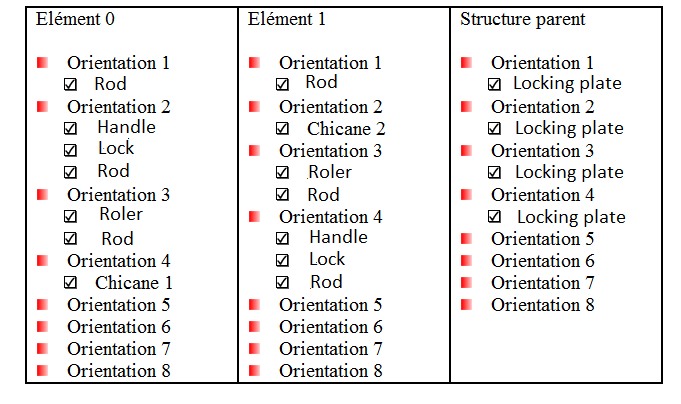

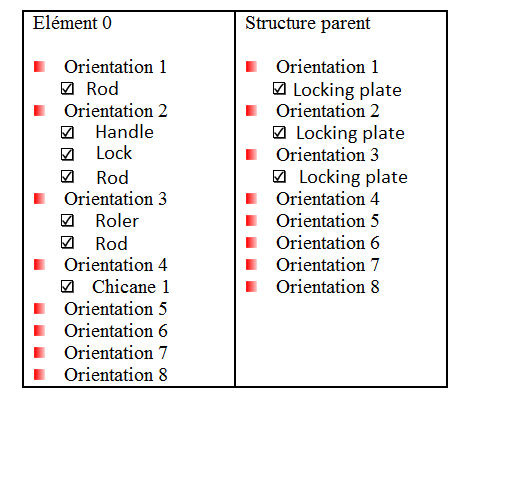

Galandage_2R_2V_Ll-2Ll :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Rod		Locking plate
Orientation 2	Handle / Lock / Rod	Chicane1	Locking plate
Orientation 3	Rollers / Rod	Rollers	Locking plate
Orientation 4	Chicanes2

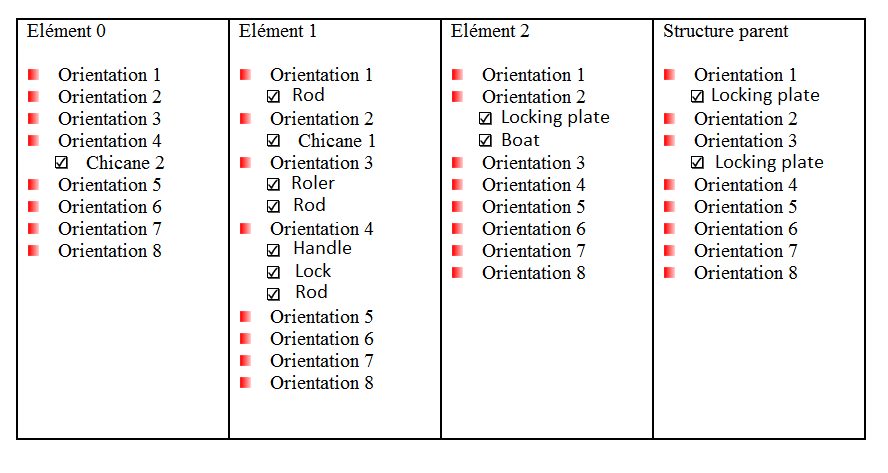

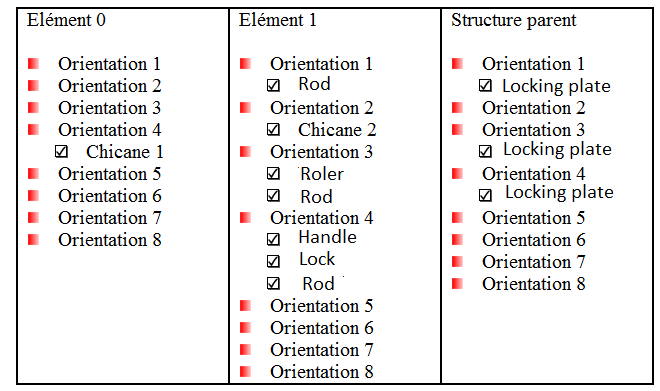

Galandage_2R_2V_Lr-2Lr :

Orientation	Element 0	Element 1	Parent Structure
Orientation 1		Rod	Locking plate
Orientation 2		Chicane2
Orientation 3	Rollers	Rollers / Rod	Locking plate
Orientation 4	Chicanes1	Handle / Lock / Rod	Locking plate

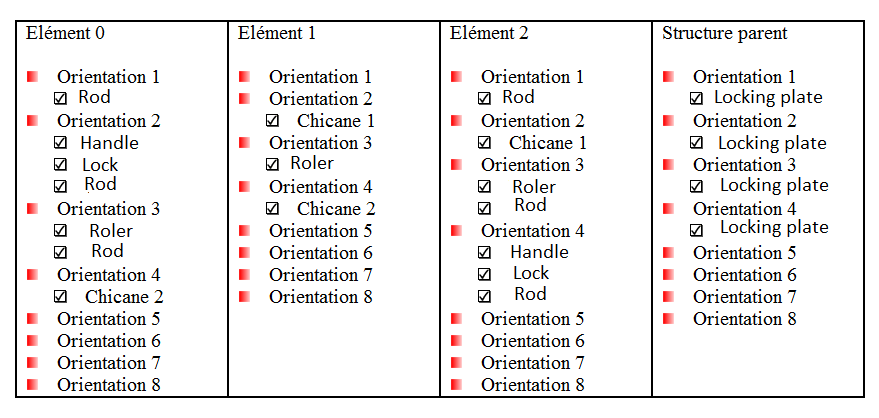

Galandage + Shutter_2R_2V~Ll-Ll :

9227

Orientation	Element 0 (shutter)	Element 1 (window )	Parent Structure
Orientation 1		Rod	Locking plate
Orientation 2		Handle / Lock / Rod	Locking plate
Orientation 3	Rollers	Rollers / Rod	Locking plate
Orientation 4

Galandage+vallet_2R_2V~Lr-Lr :

9228

Orientation	Element 0 (shutter)	Element 1 (window )	Parent Structure
Orientation 1		Rod	Locking plate
Orientation 2
Orientation 3	Rollers	Rollers / Rod	Locking plate
Orientation 4		Handle / Lock / Rod	Locking plate

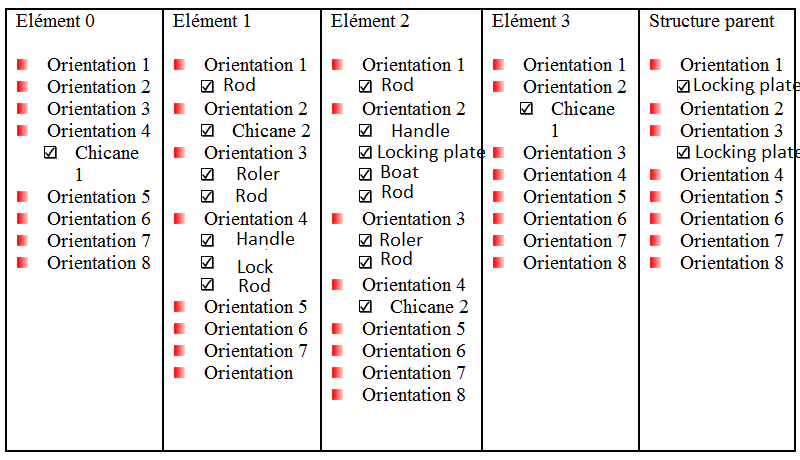

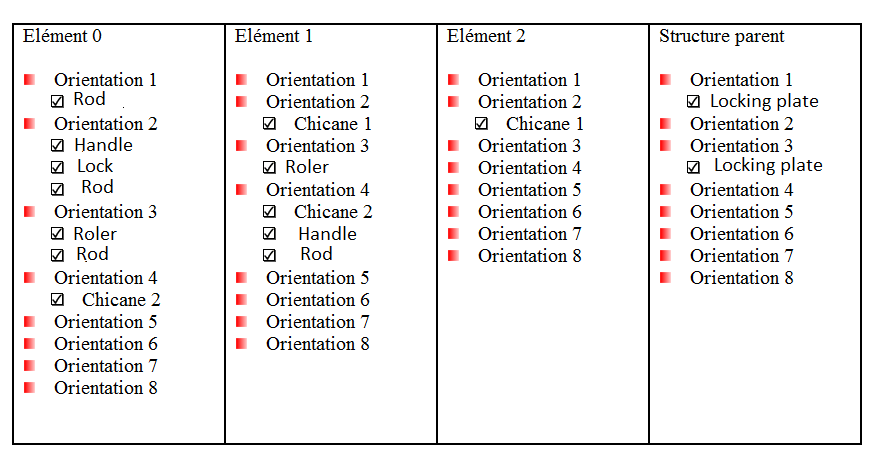

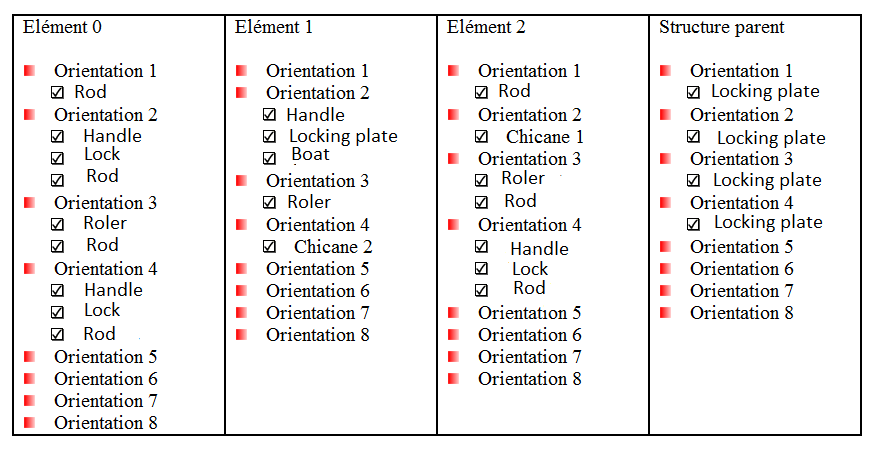

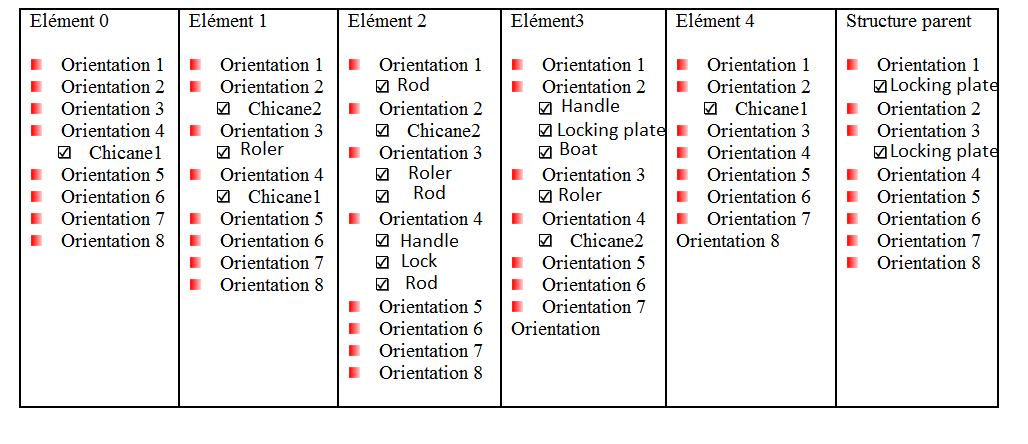

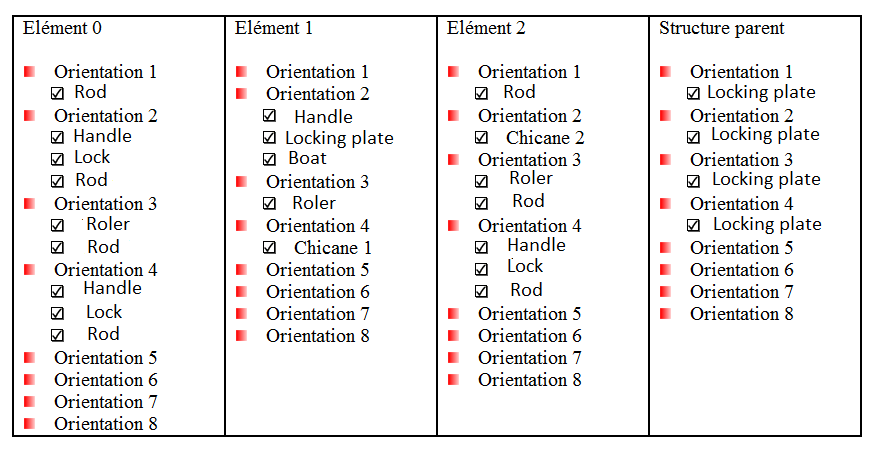

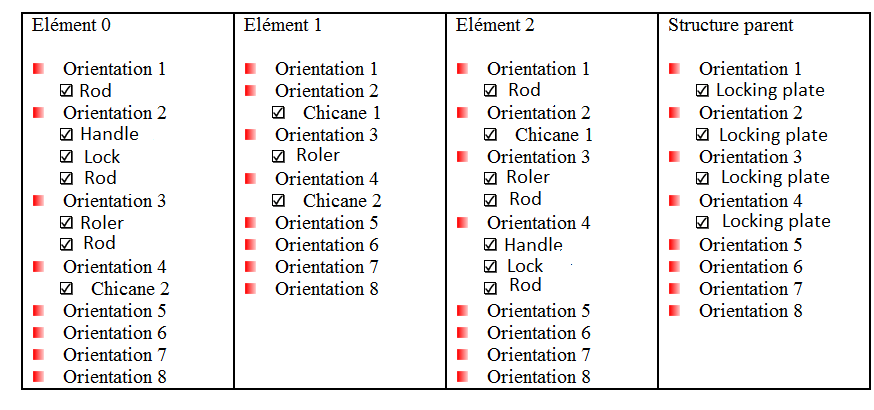

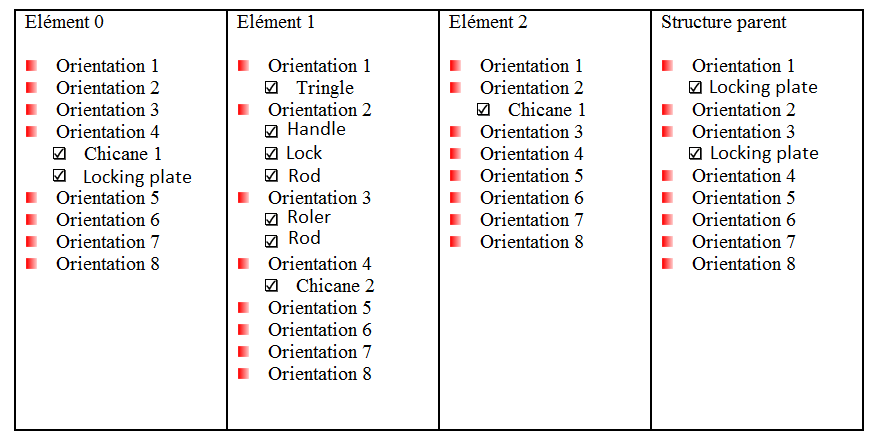

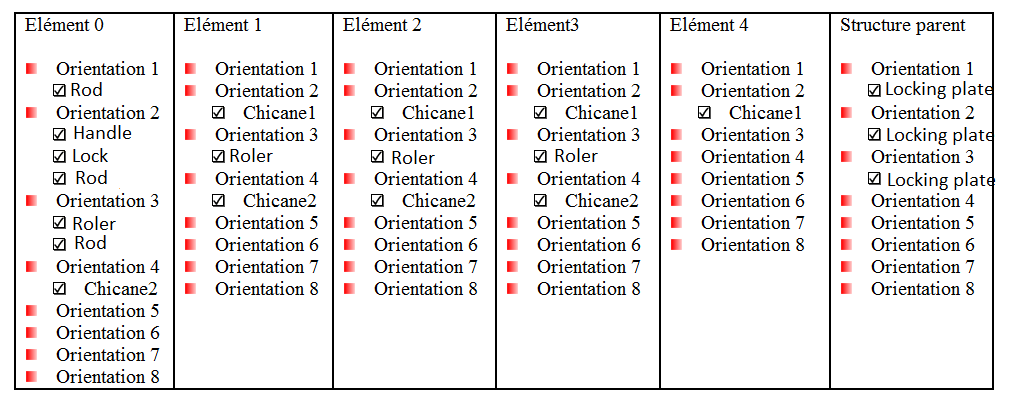

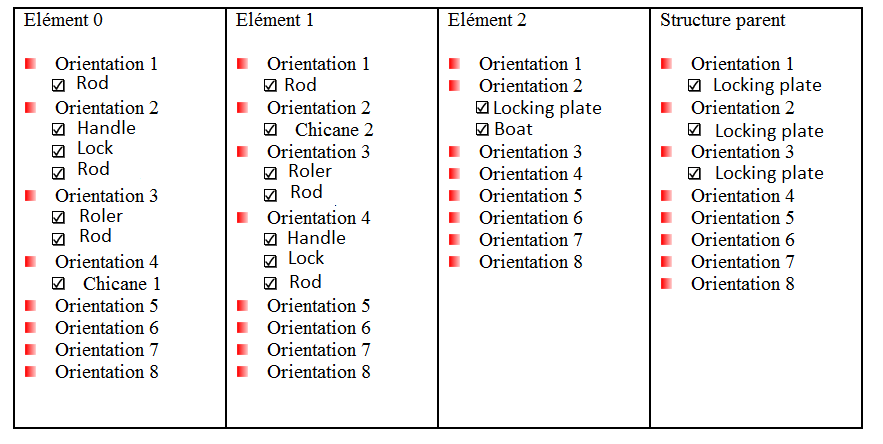

Galandage_3R_3V_Ll-2Ll-3Ll

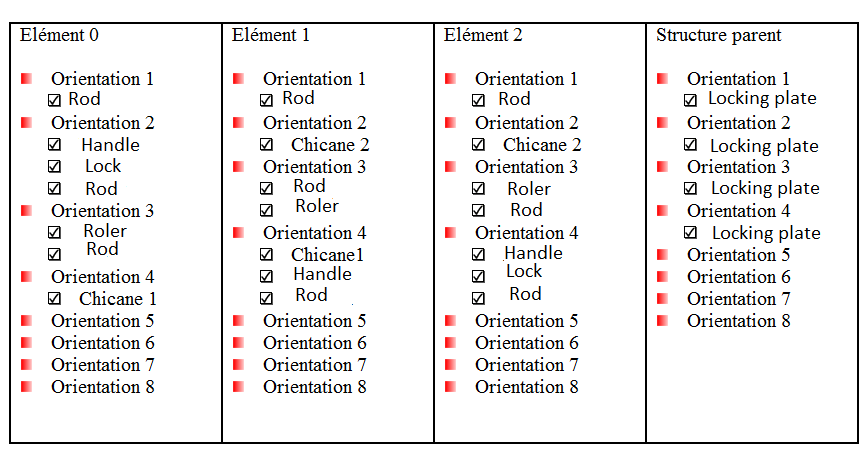

Orientation	Element 0	Element 1	Element 2	Parent Structure
Orientation 1	Rod			Locking plate
Orientation 2	Handle / Lock / Rod	Chicane1	Chicane1	Locking plate
Orientation 3	Rollers /Rod	Rollers	Rollers	Locking plate
Orientation 4	Chicanes2	Chicanes2

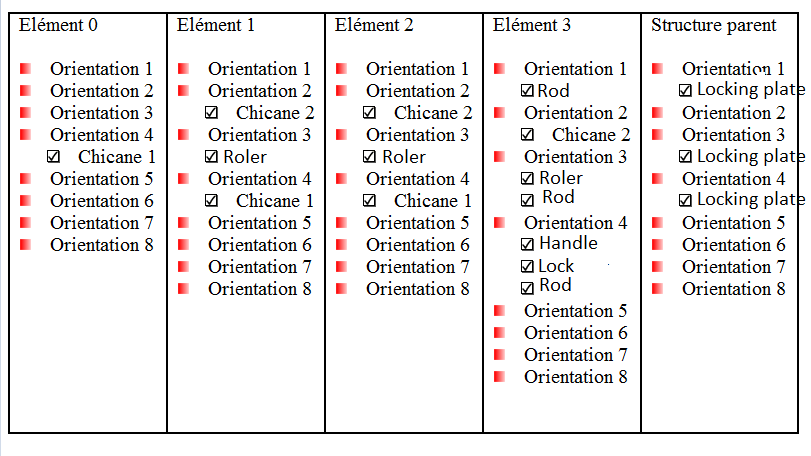

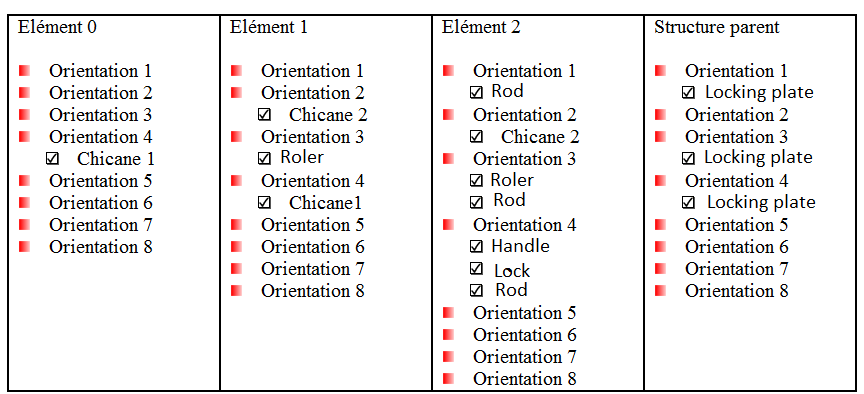

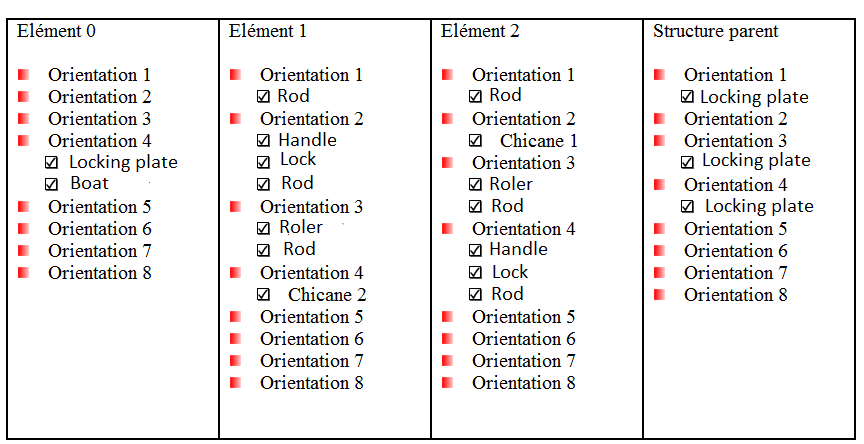

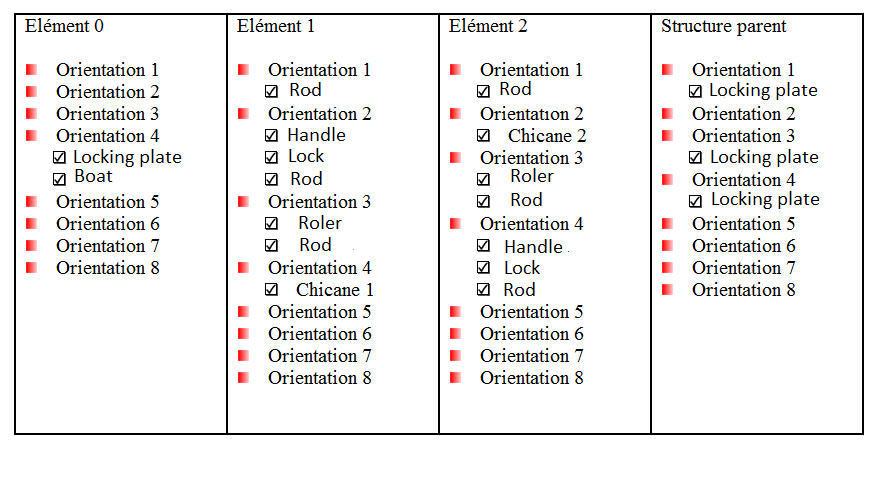

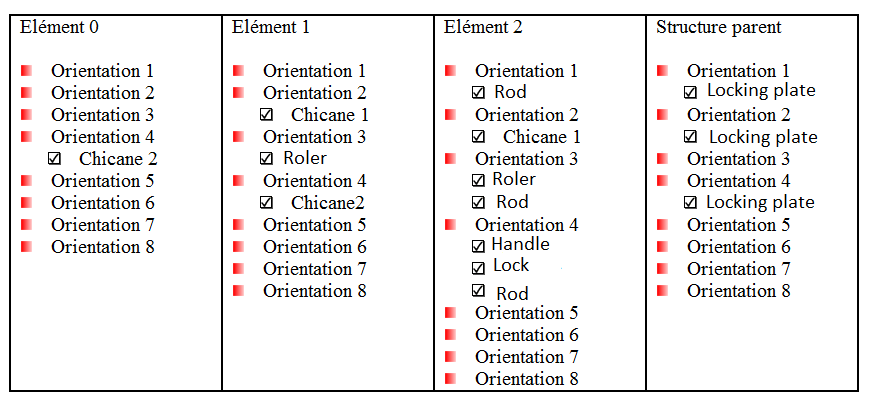

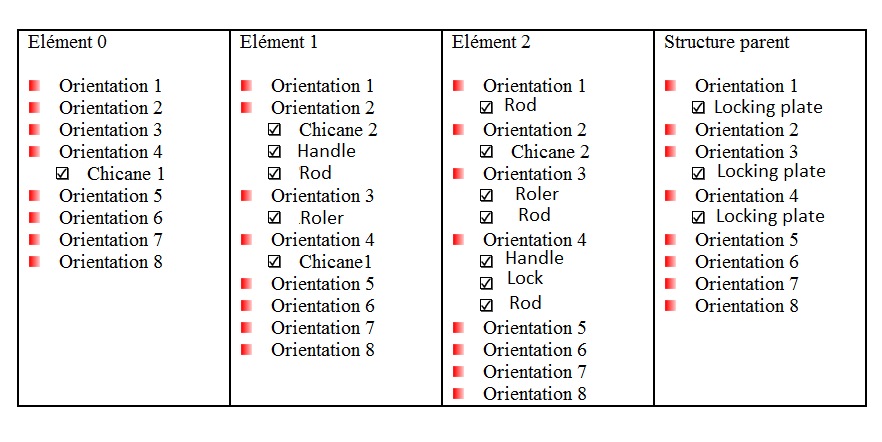

Galandage_3R_3V_3Lr-2Lr-Lr

Orientation	Element 0	Element 1	Element 2	Parent Structure
Orientation 1			Rod	Locking plate
Orientation 2		Chicane2	Chicane2
Orientation 3	Rollers	Rollers	Rollers / Rod	Locking plate
Orientation 4	Chicanes1	Chicanes1	Handle / Lock / Rod	Locking plate

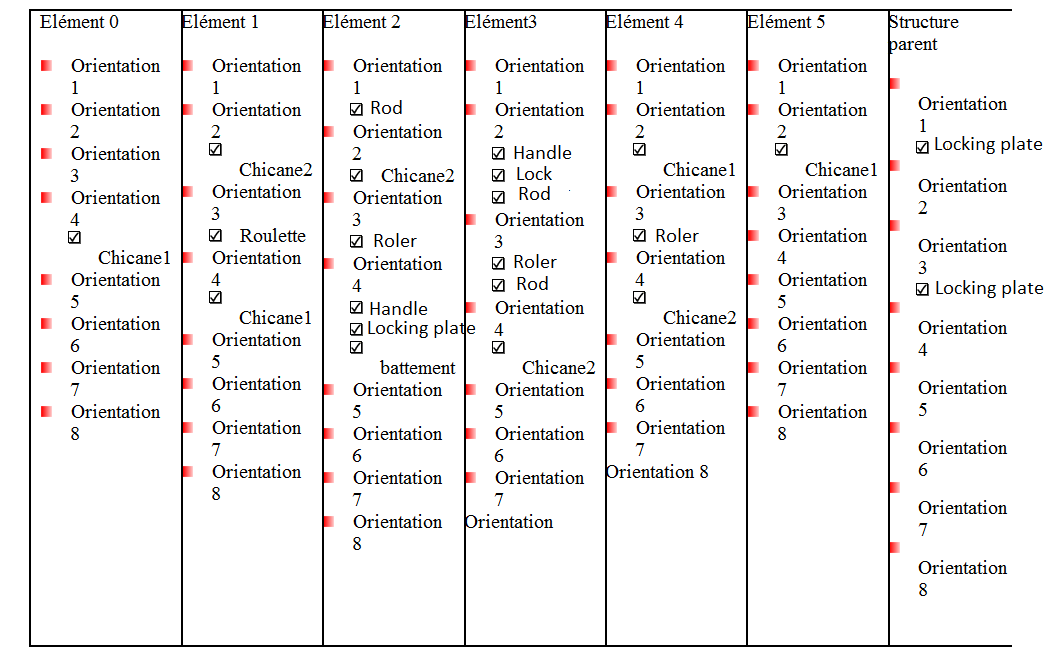

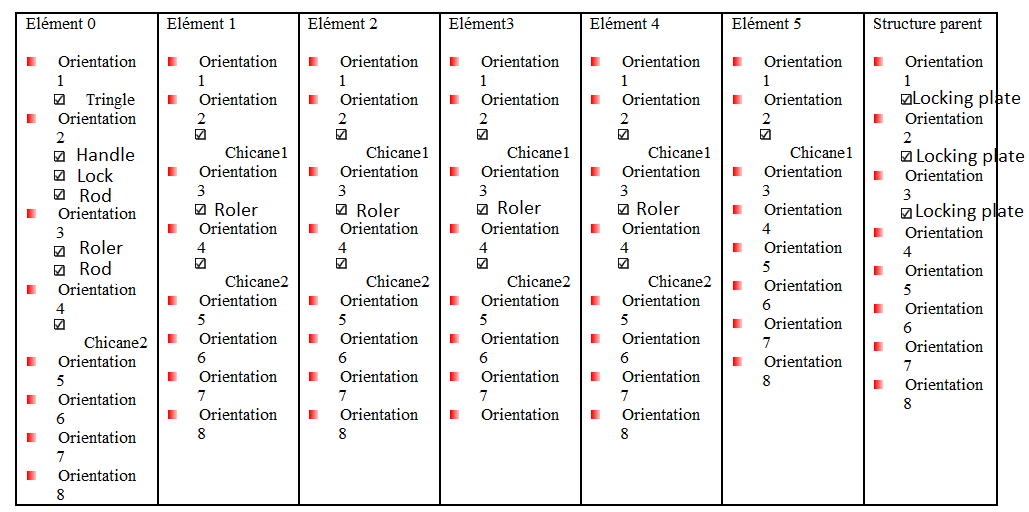

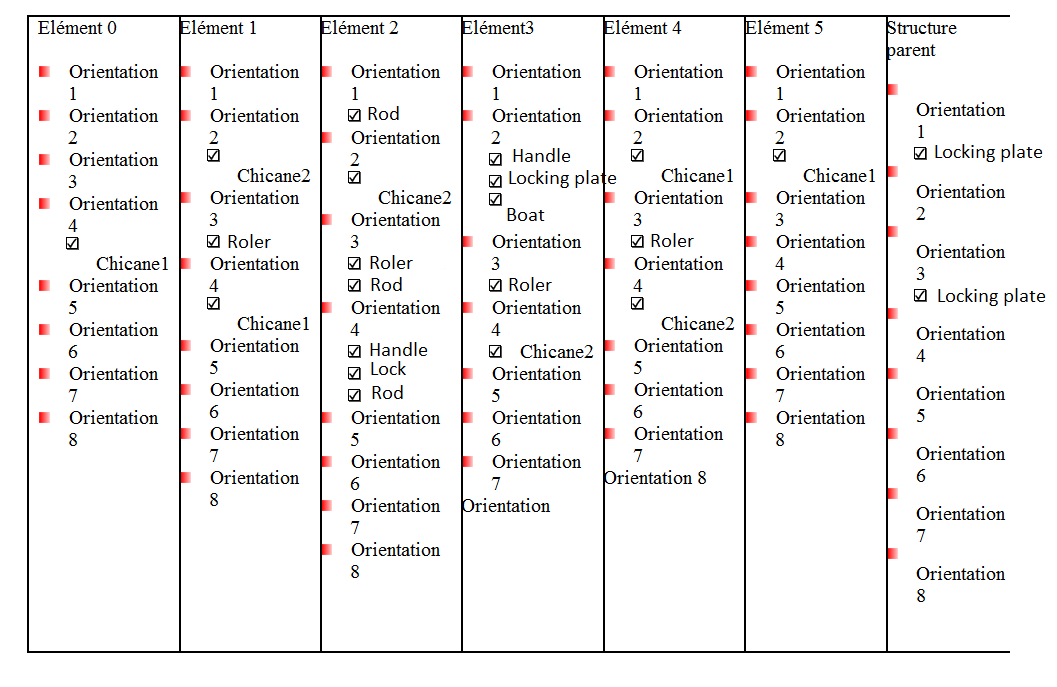

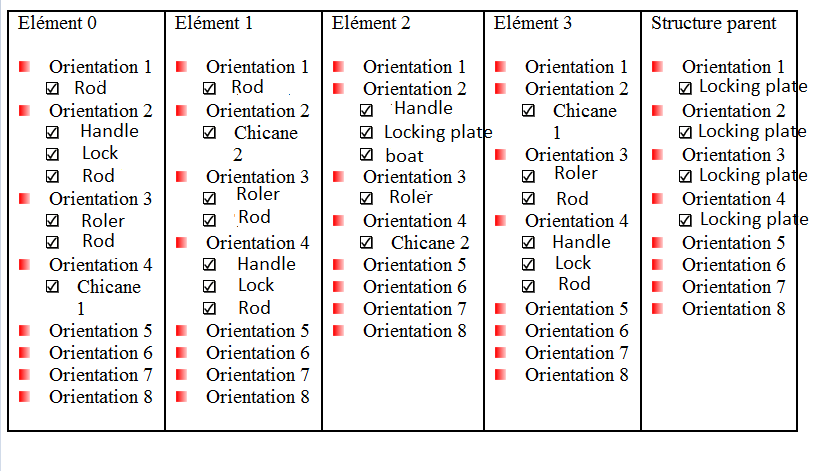

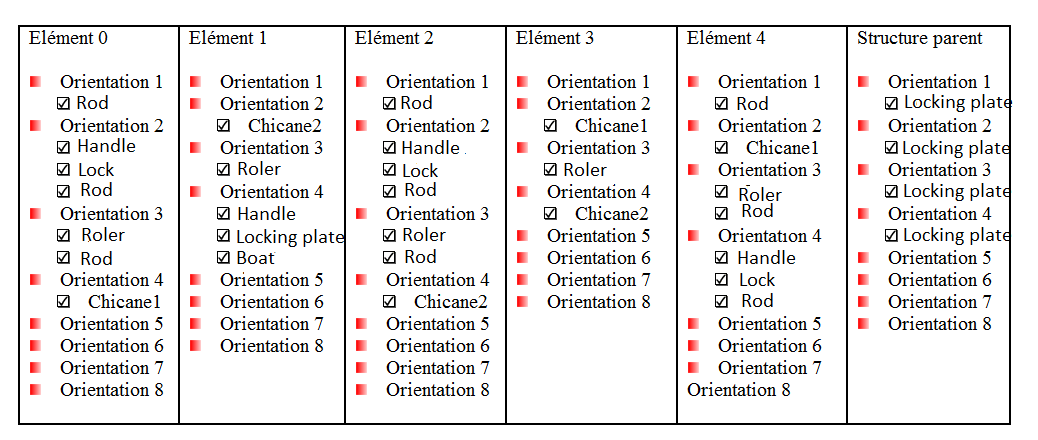

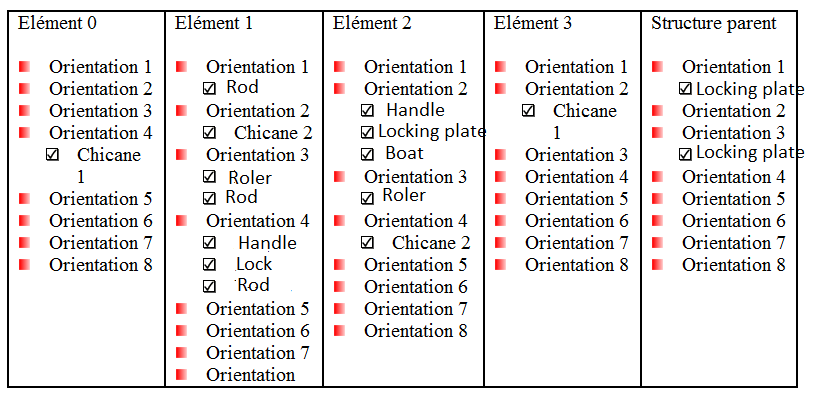

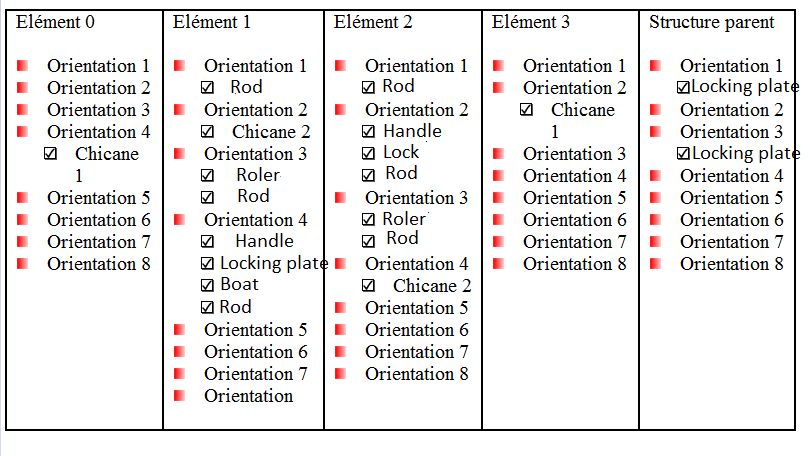

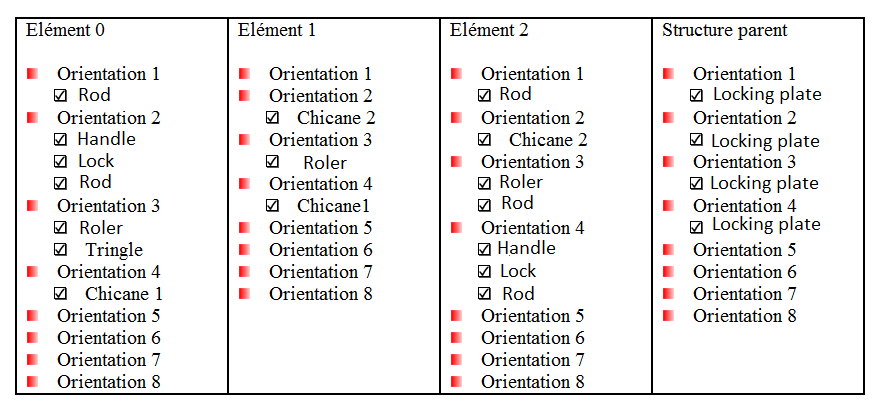

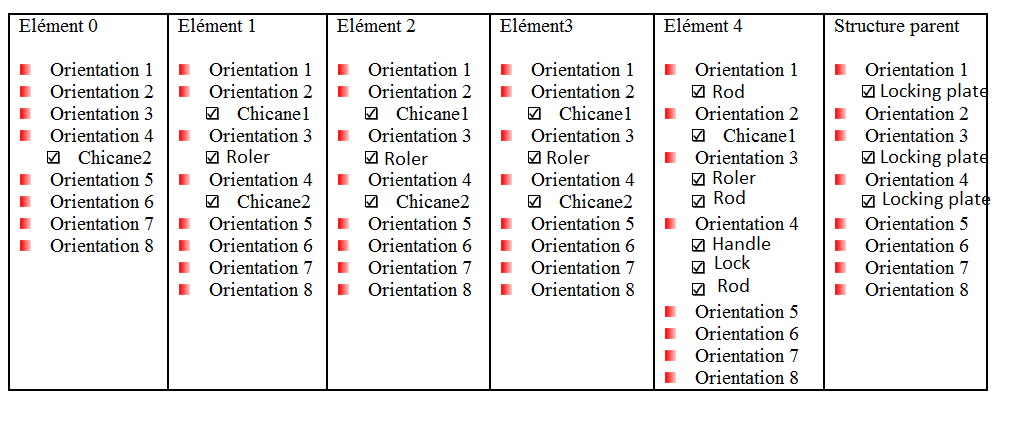

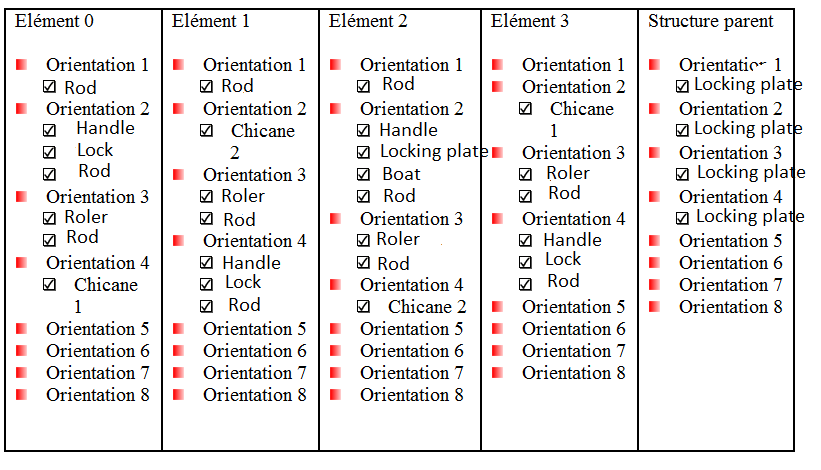

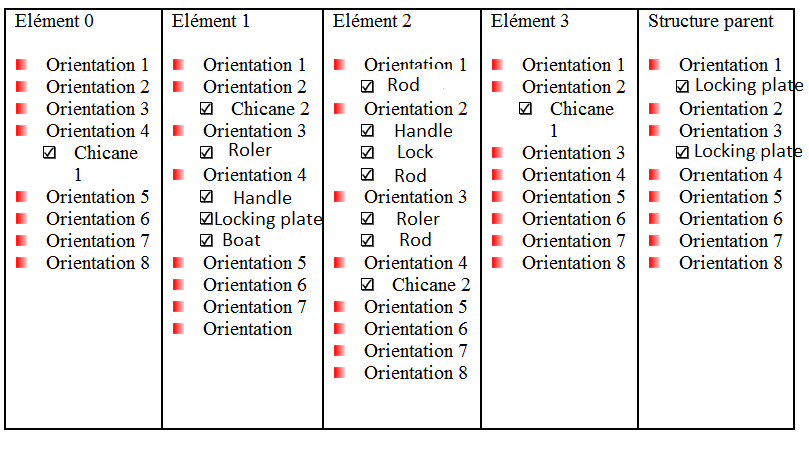

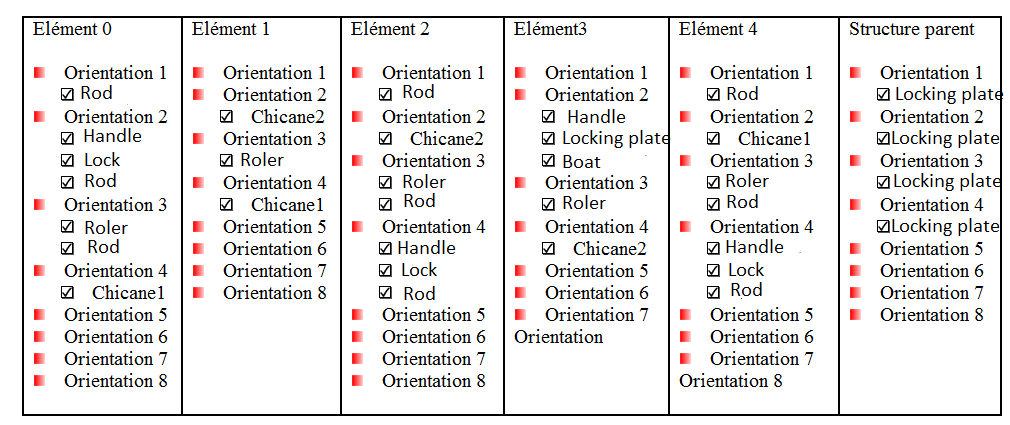

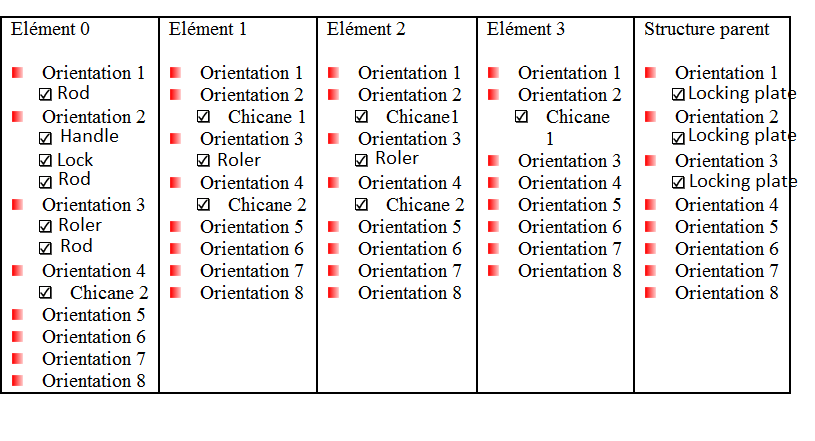

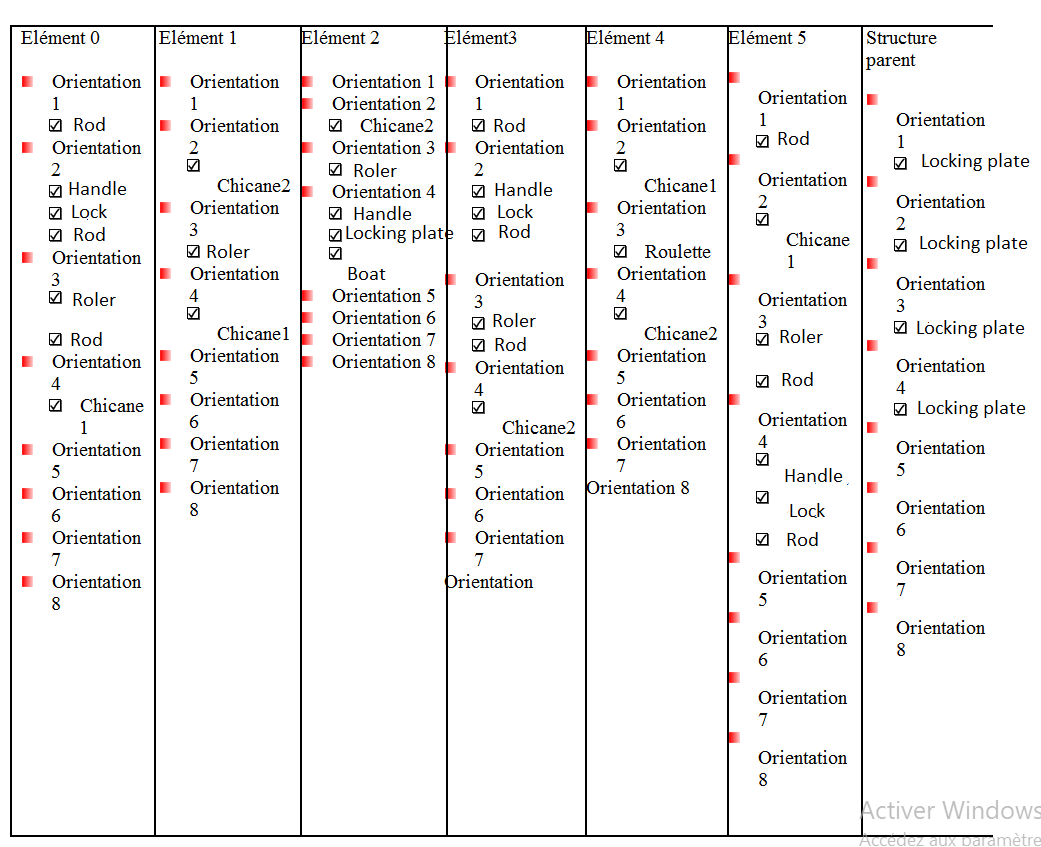

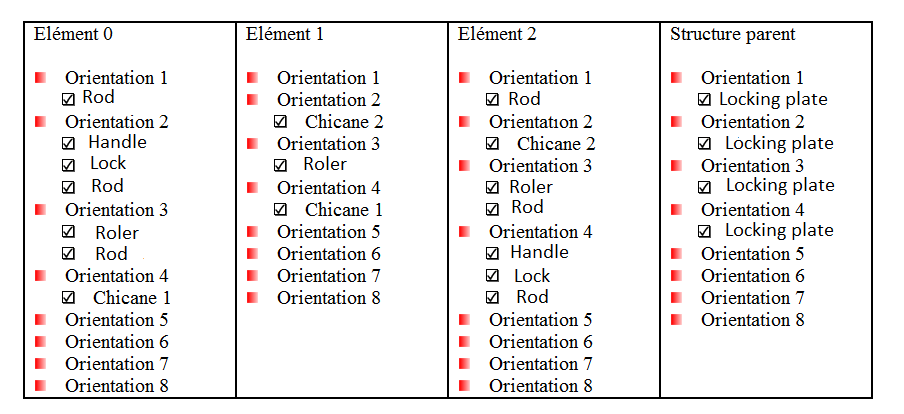

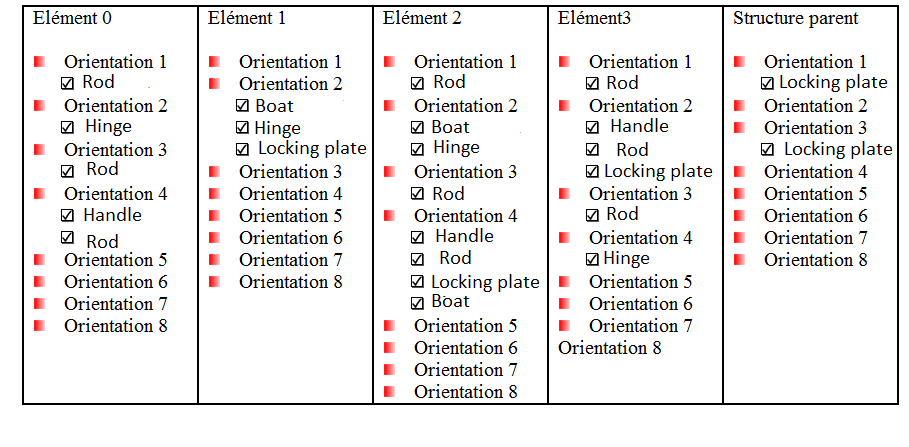

Galandage_2R_4V_Ll-2Ll(2)-2Lr(1)-Lr

Orientation	Element 0	Element 1	Element 2	Element 3	Parent Structure
Orientation 1		Rod			Locking plate
Orientation 2		Chicane2	Handle / Locking plate / Boat	Chicanes1
Orientation 3	Rollers	Rollers / Rod	Rollers	Rollers	Locking plate
Orientation 4	Chicanes1	Handle / Lock / Rod	Chicane2

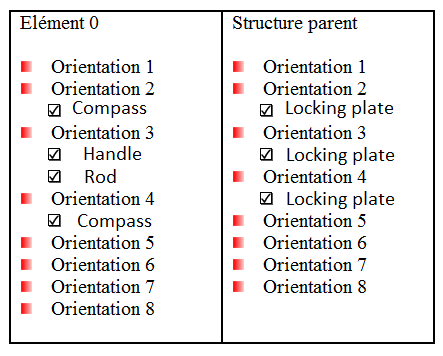

Roof

return to top list

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Chicane2
Orientation 2
Orientation 3		Chicane1
Orientation 4

Orientation	Element 0	Element 1	Parent Structure
Orientation 1	Chicane2
Orientation 2
Orientation 3		Chicane1
Orientation 4

Orientation	Element 0	Element 1	Element 2	Parent Structure
Orientation 1	Chicane2	Chicane2
Orientation 2
Orientation 3		Chicane1	Chicane1
Orientation 4

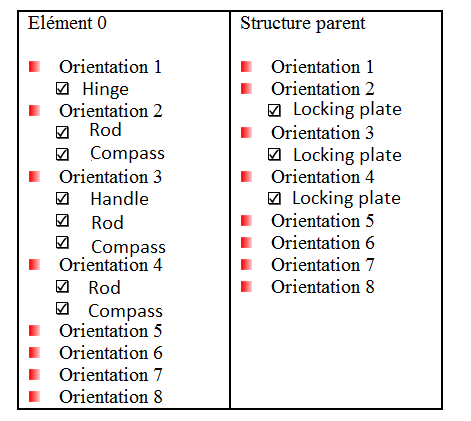

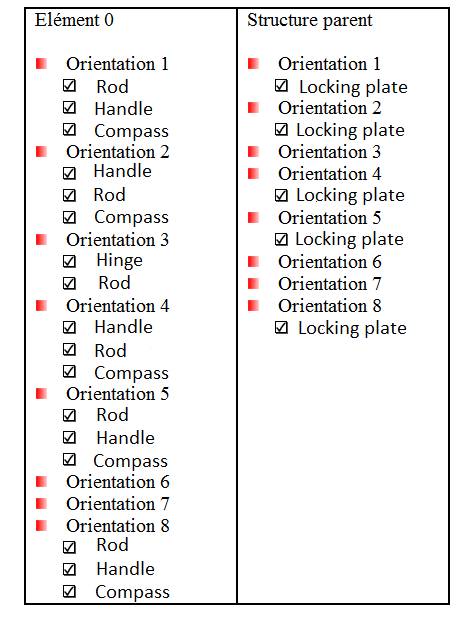

Gate

return to top list
