    • Preliminary information :

      • Conventions taken for the name of an opening process :

        1. Frame seen from inside (same as process image)

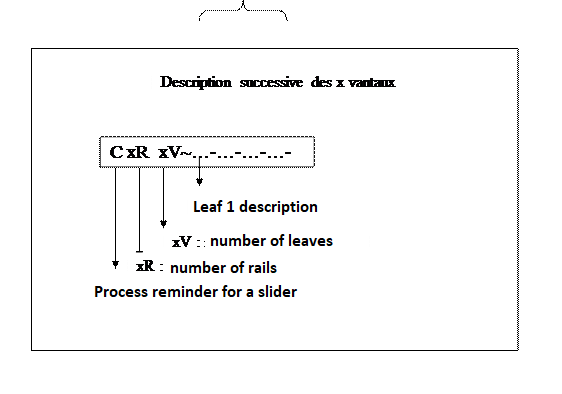

        2. Determining the name :
          → Sliding : image

        Note: First letter of the name : C: Sliding CL: Lift & Slide

        Leaf description :

        • F : fixed leaf
        • Lf: movement of sash length to the left
        • Lr: movement of sash length to the right
        • x Lg or xLd: movement of x times the leaf length to the left or right
        • Lf(x): movement of sash length to the left, with sash on rail "x" (seen from inside)
        • Lf[1] : leaf length displacement to the left, leaf opening first
        • Lr[2] : shift of leaf length to the right, leaf opening second
          Example : image
          → Strike :
          Notion of left - right: hinge position
          • Left: hinge on left side seen from inside
          • Right: hinges on right side seen from inside
        • Pictures : Images associated with opening processes are seen from the inside
    • Hardware code :
      • Hardware code (CodeQ) = 4 digits. The first digit always corresponds to the type of opening process. The other 3 digits have a specific meaning depending on the type of opening process.
      • Rule: 1 unique code for each opening procedure

SPECIAL CASE

return to top list


Basculants and pivants

return to top list

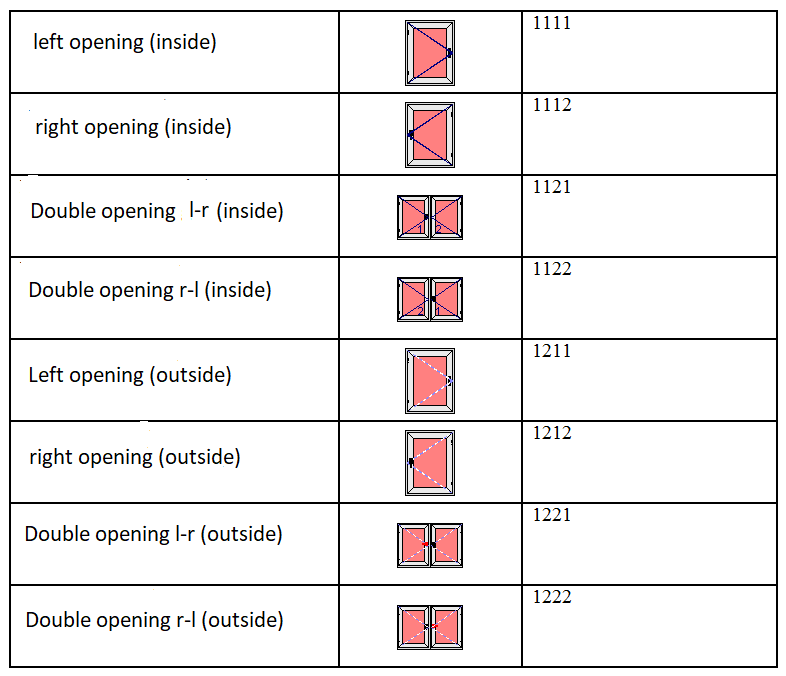

opening hits

return to top list

  • 1st digit: 1 = Type of opening procedure (French hinge)

  • 2nd digit: Opening direction

    0 = inside and outside

    1 = inside

    2 = outside

  • 3rd digit: Number of elements

  • 4th digit: often :

    0 : no notion of left or right

    1: left-hand concept

    2: right-hand concept

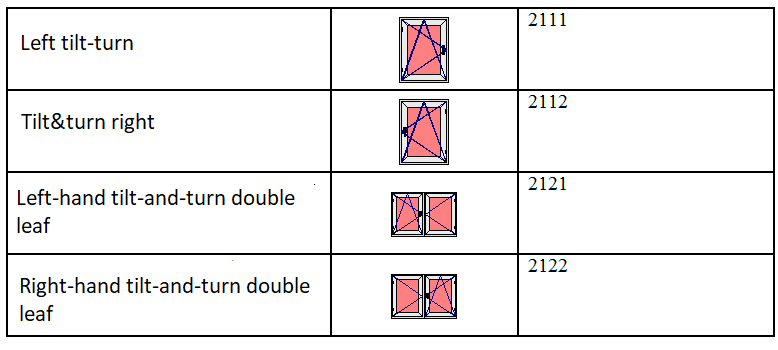

Tilt turn and drop open

return to top list

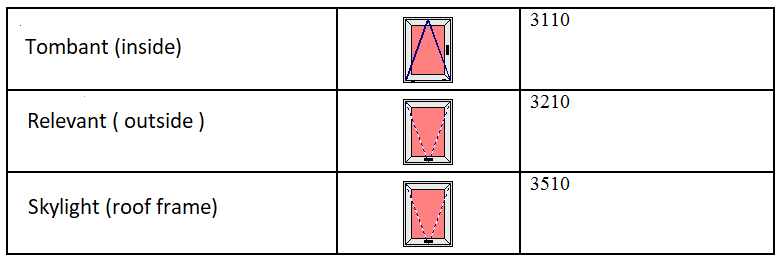

Inside tombant and outside relevant

return to top list


Projecting Italian

return to top list


Sliding doors and windows

return to top list

1st number: 5 = Type of opening system: sliding doors&windows

2nd number: Number of tracks

3rd digit: Number of sashes

4th digit: no particular significance

C1R_1V_Ll Monorail + Fixedimage5111
C1R_1V_Lr Monorail + Fixedimage5112
CL1R_1V_Ll Monorail + Fixedimage5115
CL1R_1V_Lr Monorail + Fixedimage5116
C1R_2V_Ll[1]-Lr[2]image5121
C1R_2V_Ll[2]-Lr[1]image5122
CL1R_2V_Ll[1]-Lr[2]image5125
CL1R_2V_Ll[2]-Lr[1]image5126
C2R_2V~F-Ll 2R_2 VTX_Fixe-Llimage5121
C2R_2V~Lr-F 2R 2 VTX_Lr-Fixeimage5222
C2R_2V~Lr(1)-Ll(2) 2R 2 VTX_Lr(1)-Ll(2)image5223
C2R_2V~Lr(2)-Ll(1) 2R 2 VTX_Lr(2)-Ll(1)image5224
CL2R_2V~F-Llimage5225
CL2R_2V~Lr-Fimage5226
CL2R_2V~Lr(1)-Ll(2)image5227
CL2R_2V~Lr(2)-Ll(1)image5228
C2R_3V~Lr-F-Ll 2R 3 VTX_Lr-Fixe_Llimage5230
C2R_3V~Lr(2)-Lr(2)-Ll(1)image5231
C2R_3V~Lr(1)-Ll(2)-Ll(2)image5232
C2R_3V~Lr(1)-Ll(1)-Ll(2)image5233
C2R_3V~Ld(2)-Ll(1)-Ll(1)image5234
C2R_3V~Lr-Lr/l-Llimage5235
C2R_3V~F(2)-Lr/l-F(2)5236
C2R_3V~Lr(2)-Lr/l(1)-Ll(2)5237
C2R_3V~F(1)-Lr(1)-Ll(2)image5237 Rem: For the moment same codeQ (5237-01)
C2R_3V~F(2)-Lr(2)-Ll(1)image5237 Rem: For the moment same codeQ
C2R_3V~Lr(1)-Ll(2)-F(1)image5238
C2R_3V~Lr(2)-Ll(1)-F(1)image5238 Rem: For the moment same codeQ (5238-01)
C2R_3V~F(2)-Lr(2)-F(1)image5239
C2R_3V~F(1)-Ll(2)-F(2)image5239 Rem : For the moment same codeQ (5239-01)
C2R_3V~F(2)-Ll(1)-F(1)image5239 Rem : For the moment same codeQ (5239-02)
C2R_3V~F(1)-Lr(1)-F(2)image5239 Rem: For the moment same codeQ (5239-03)
CL2R_2V~F(2)-Lr(1)-F(2)image5239 Rem : For the moment same codeQ (5239-04)
CL2R_2V~F(2)-Ll(1)-F(2)image5239 Rem : For the moment same codeQ (5239-05)
C2R_4V~F(2)-Lg(1)[1]-Ld(1)[2]-F(2) 2R 4 VTX_Fixe-Lg[1]-Ld[2]-Fixeimage5241
C2R_4V~F(1)-Ll(2)[1]-Lr(2)[2]-F(1)image5241 Rem : For the moment same codeQ (5241-01)
C2R_4V~F(2)-Ll(1)[2]-Lr(1)[1]-F(2) 2R 4 VTX_Fixe-Ll[2]-r[1]-Fixedimage5242
C2R_4V~F(1)-Ll(2)[2]-Lr(2)[1]-F(1)image5242 Rem: For the moment same codeQ (5242-01)
C2R-4V~ Lr(2)-Ll(1)[1]-Lr(1)[2]-Ll(2) 2R 4 VTX_Lr-Lg[1]-Lr[2]-Llimage5243
C2R-4V~ Lr(1)-Ll(2)[1]-Lr(2)[2]-Ll(1)image5243 Rem: For the moment same codeQ (5243-01)
C2R-4V~ Ld(2)-Ll(1)[2]-Lr(1)[1]-Ll(2) 2R 4 VTX_Lr-Lg[2]-Lr[1]-Llimage5244
C2R-4V~ Lr(1)-Ll(2)[2]-Ll(2)[1]-Ll(1)image5244 Rem: For the moment same codeQ (5244-01)
CL2R_4V~F-Ll[1]-Lr[2]-F 2R 4 VTX_Fixe-Ll[1]-Lr[2]-Fixeimage5245
CL2R_4V~F-Ll[2]-Lr[1]-F 2R 4 VTX_Fixe-Ll[2]-Lr[1]-Fixeimage5246
CL2R-4V~ Lr(2)-Ll(1)[1]-Lr(1)[2]-Ll(2) 2LR 4 VTX_Lr-Lg[1]-Lr[2]-Llimage5247
CL2R-4V~ Lr(2)-Ll(1)[2]-Lr(1)[1]-Ll(2) 2LR 4 VTX_Lr-Ll[2]-Lr[1]-Llimage5248
CL3R_3V~2Lr(1)-Lr-Ll(3) 3LR 3 VTX_2Lr-Lr-Llimage5330
C3R_3V~F(3)-Ll-2Ll(1) 3R 3 VTX_F(3)-Lr-Fixe(1)image5331
CL3R_3V~F(3)-Ll-2Ll(1)image5331 Rem : For the moment same codeQ (5331-01)
C3R_3V~2lr(1)-Lr-F(3) 3R 3 VTX_2Lr-Lr-Fixedimage5332
CL3R_3V~2lr(1)-Lr-F(3)image5332 Rem: For the moment same codeQ (5332-02)
C3R_3V~Lr(3)-Ll-2Ll(1) 3R 3VTX_Lr(3)-Ll-2ll(1)image5333
C3R_3V~2Lr(1)-Lr-Ll(3) 3R 3 VTX_2Lr-Lr-Llimage5334
C3R_3V~F(1)-Ll-2Ll(3)image5335
C3R_3V~2Lr(3)-Lr-F(1)image5336
C3R_3V~Lr(1)-Ll-2Ll(3)image5337
C3R_3V~2Lr(3)-Lr-Ll(1)image5338
CL3R_3V~Lr(3)-Ll-2Ll(1) 3LR 3VTX_Lr(3)-Ll-2ll(1)image5339
C3R_5V~F(3)-Ll(2)-Ll[1]-Lr[2]-F(2)image5351
C3R_5V~F(2)-Ll[2]-Lr[1]-Lr(2)-F(3)image5352
C3R_5V~Lr(3)-Ll/r(2)-Ll[1]-Lr[2]-Ll(2)image5353
C3R_5V~Lr(2)-Ll[2]-Lr[1]-Ll/r(2)-Ll(3)image5354
C3R_6V~F-Ll-Ll[1]-Lr[2]-Lr-Fimage5361
C3R_6V~F-Ll-Ll[2]-Lr[1]-Lr-Fimage5362
C3R_6V~Lr-Ll-Ll[1]-Lr[2]-Lr-Lrimage5363
C3R_6V~Lr-Ll-Ll[2]-Lr[1]-Lr-Llimage5364
CL3R_6V~Lr-Ll-Ll[1]-Lr[2]-Lr-Llimage5367
CL3R_6V~Lr-Ll-Ll[2]-Lr[1]-Lr-Llimage5368
C4R_4V~F_Ll_2Ll_3Ll 4R 4 VTX_Fixe-Ll-2Ll-3Llimage5441
C4R_4V~3Lr_2Lr_Lr_F 4 VTX_3Lr_2Lr-Lr-Fixedimage5442
C4R_4V~3Lr_Ll_2Ll_3Ll5443
C4R_4V~3Lr_2Lr_Lr_3ll5444
C5R_5V~F_4Ll_3Ll_2Ll_1Llimage5551
C5R_5V~1Lr_2Lr_3Lr_4Lr_Fimage5552
C5R_10V~Lr-Ll-Ll-Ll-Ll[1]-Lr[2]-Lr-Lr-Lr-Ll5513
C5R_10V~Lr-Ll-Ll-Ll-Ll[2]-Lr[1]-Lr-Lr-Lr-Ll5514
C6R_6V~F_5Ll_4Ll_3Ll_2Ll_1Llimage5661
C6R_6V~1Lr_2Lr_3Lr_4Lr_5Lr _Fimage5662

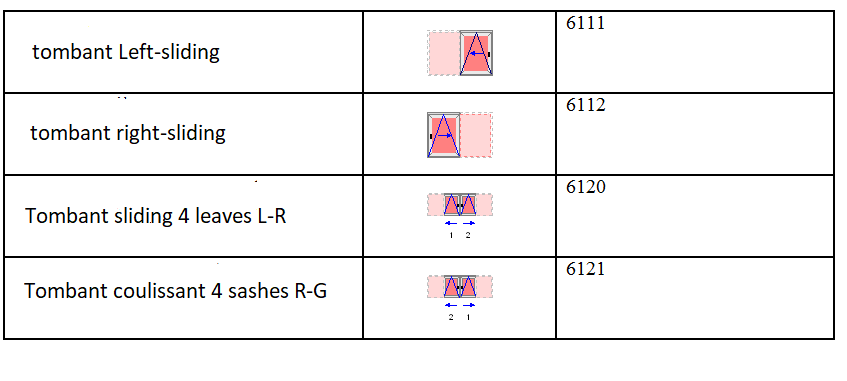

Sliding-tombant doors and windows (translating slides)

return to top list

1st number: 6 = Type of opening process: Drop & slide

2nd number: 1 = inside opening

3rd digit: Number of sashes

4th digit: no particular significance


Folding-sliding (accordion) doors (translatory sliding)

return to top list

1st digit: 7 = Opening method: Folding-sliding doors

2nd digit: 0

3rd digit: Number of leaves opening to the left (int view)

4th digit: Number of leaves opening to the right (int. view)

pp~1V-rimage7001
pp~1V-limage7010
pp~2V-rimage7002
pp~2V-limage7020
pp~3V-rimage7003
PP~3V-limage7030
PP~2V-l_1V-rimage7021
PP~1V-l_2V-rimage7012
Pp~4V-rimage7004
Pp~4V-limage7040
PP~3V-l[1]_1V-r[2]image7131
PP~3V-l[2]_1V-r[1]image7231
PP~1V-l[1]_3V-r[2]image7113
PP~1V-l[2]_3V-r[1]image7213
PP~5V-rimage7005
PP~5V-limage7050
PP~1V-l_4V-rimage7014
PP~4V-l_1V-rimage7041
PP~3V-l_2V-rimage7032
PP~2V-l_3V-rimage7023
PP~6V-rimage7006
PP~6V-limage7060
PP~5V-l[1]_1V-r[2]7151
PP~5V-l[2]_1V-r[1]7251
PP~1V-l[1]_5V-r[2]7115
PP~1V-l[2]_5V-r[1]7215
PP~3V-l_3V-r7033
PP~4V-l_4V-r7044
PP~5V-l_5V-r7055
PP~6V-l_6V-r7066
PP~7V-rimage7007
PP~7V-limage7070
PP~8V-rimage7008
PP~8V-limage7080

Doors

return to top list

1st digit: 1 = Type of opening procedure (French hinge)

2nd digit: Opening direction

0 = inside and outside

1 = inside

2 = outside

3rd digit: Number of elements

4th digit: often :

0 : no notion of left or right

1: left-hand concept

2: right-hand concept

Swing door, leftimage8011
Right-hand opening and closing doorimage8012
Double swing doorimage8020
Left pivoting doorimage8015
Right pivoting doorimage8016
Double pivoting door L-Rimage8025
Double pivoting door R-Limage8026
Left opening door (int)image8111
Right opening door (int)image8112
Double opening door L-R (int)image8121
Double opening door R-L (int)image8122
Left opening door (ext)image8211
Right opening door (ext)image8212
Double door opening L-R (ext)image8221
Double door opening R-L (ext)image8222

gallandage

return to top list

1st digit: 9 = Type of opening procedure: Galandage

2nd number: Number of tracks

3rd digit: Number of leaves

4th digit: no particular significance

Gallandage_1R_1V_Lleftimage9111
Gallandage_1R_1V_Lrightimage9112
Gallndage_1R_2V_Ll(2)-Lr(1)image9122
Gallndage_1R_2V_Ll(1)-Lr(2)9121
Gallandage_2R_2V_Ll-2Lgimage9221
Gallndage_2R_2V_2Lr-Lrimage9222
Gallandage+volet_2R_2~Ll-Llimage9227
Gallandage+volet_2R_2~Lr-Lrimage9228
Gallandage_3R_3V_Ll-2Ll-3Llimage9331
Gallandage_3R_3V_3Lr-2Lr-Lrimage9332
Gallandage_2R_4V_Ll-2Ll(2)-2Lr(1)-Lrimage9242
Gallandage_2R_4V_Ll-2Ll(1)-2Lr(2)-Lr9241

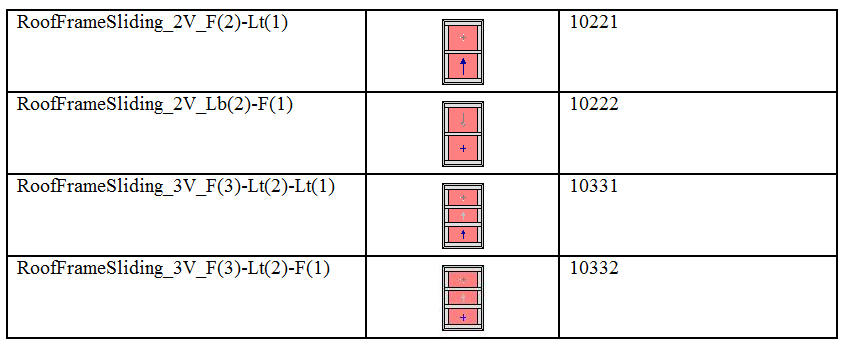

Roof

return to top list

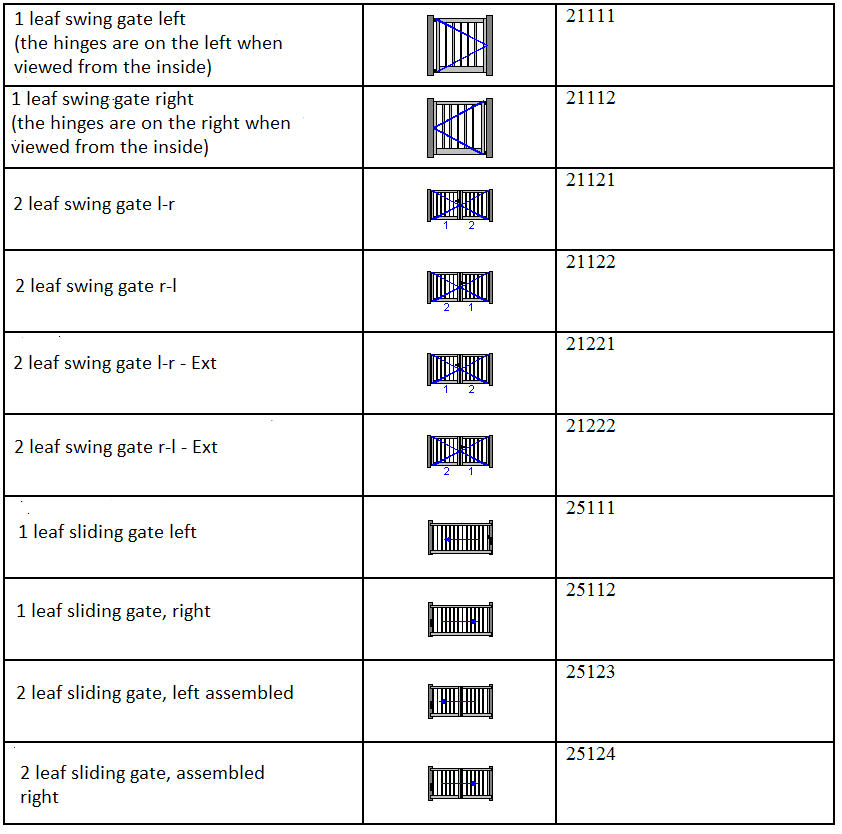

Gate

return to top list
